C HAPTER 11 | Class of Service
Layer 2 Queue Settings
– 222 –
◆ If the output port is an untagged member of the associated VLAN,
these frames are stripped of all VLAN tags prior to transmission.
PARAMETERS
These parameters are displayed:
◆ Interface – Displays a list of ports or trunks.
◆ CoS – The priority that is assigned to untagged frames received on the
specified interface. (Range: 0-7; Default: 0)
WEB INTERFACE
To configure the queue mode:
1. Click Traffic, Priority, Default Priority.
2. Select the interface type to display (Port or Trunk).
3. Modify the default priority for any interface.
4. Click Apply.

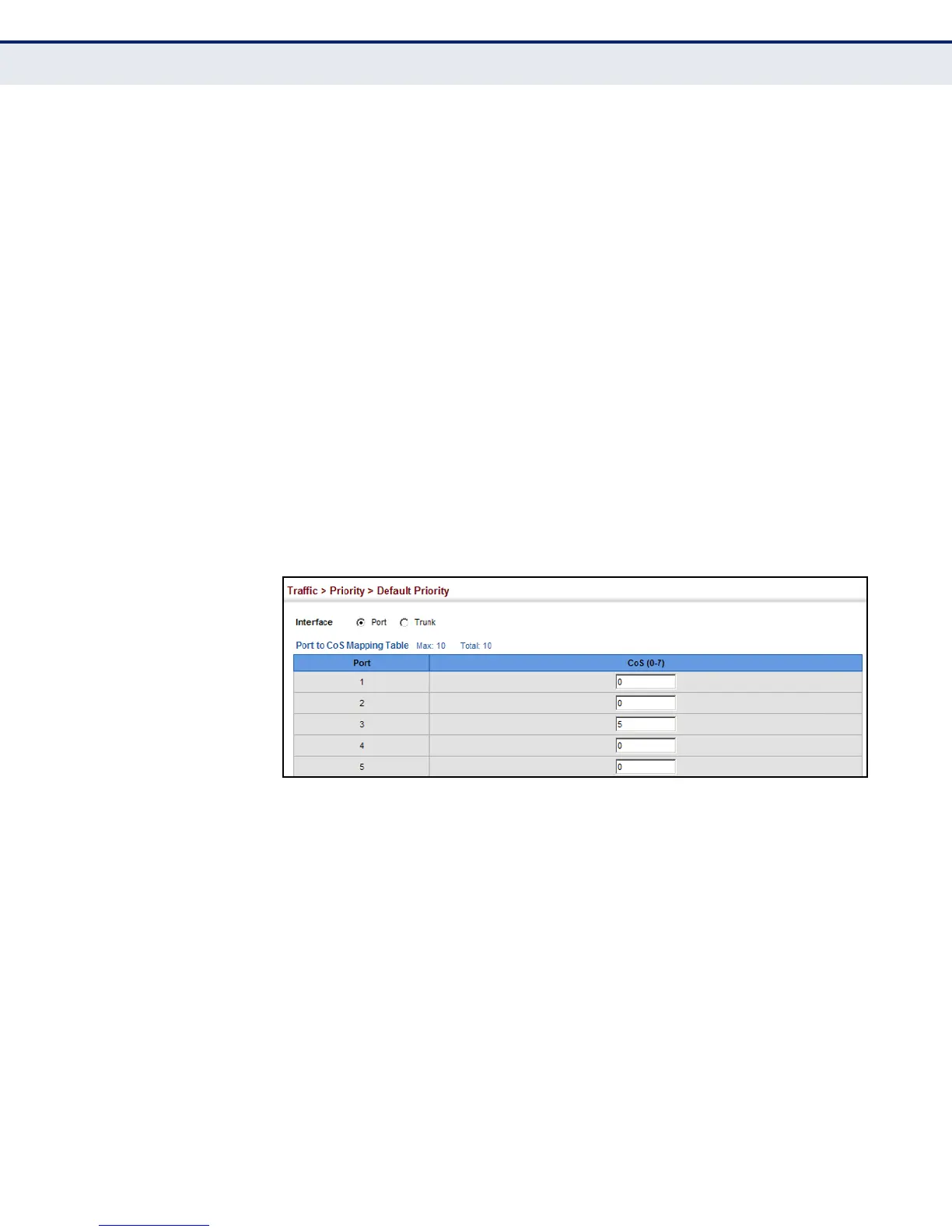

Figure 109: Setting the Default Port Priority
SELECTING THE
QUEUE MODE
Use the Traffic > Priority > Queue page to set the queue mode for the
egress queues on any interface. The switch can be set to service the
queues based on a strict rule that requires all traffic in a higher priority
queue to be processed before the lower priority queues are serviced,
Shaped Deficit Weighted Round-Robin (SDWRR) queuing that specifies a
scheduling weight for each queue. SDWRR is labelled WRR in the menu. It
can also be configured to use a combination of strict and weighted
queuing.
CLI REFERENCES
◆ "queue mode" on page 818
◆ "show queue mode" on page 821
COMMAND USAGE
◆ Strict priority requires all traffic in a higher priority queue to be
processed before lower priority queues are serviced.
