C
HAPTER
15
| Basic Administration Protocols
Switch Clustering
– 409 –

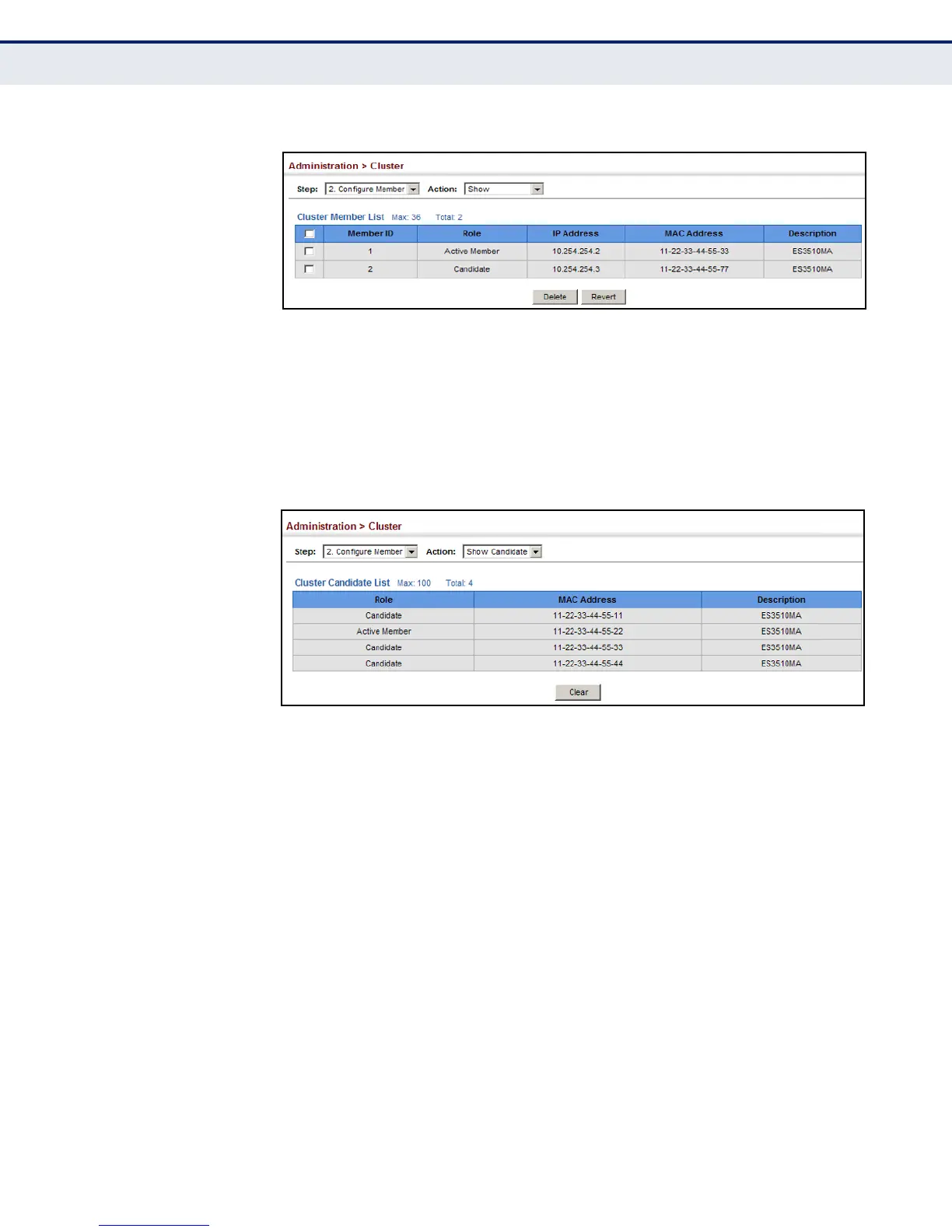

Figure 245: Showing Cluster Members
To show cluster candidates:
1. Click Administration, Cluster.
2. Select Configure Member from the Step list.
3. Select Show Candidate from the Action list.
Figure 246: Showing Cluster Candidates
MANAGING CLUSTER
MEMBERS
Use the Administration > Cluster (Show Member) page to manage another
switch in the cluster.
CLI REFERENCES
◆ "Switch Clustering" on page 548
PARAMETERS
These parameters are displayed:
◆ Member ID – The ID number of the Member switch. (Range: 1-36)
◆ Role – Indicates the current status of the switch in the cluster.
◆ IP Address – The internal cluster IP address assigned to the Member
switch.
◆ MAC Address – The MAC address of the Member switch.
◆ Description – The system description string of the Member switch.
