C
HAPTER
5
| Interface Configuration
Trunk Configuration
– 142 –
To configure connection parameters for a dynamic trunk:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Trunk from the Step List.
3. Select Configure from the Action List.
4. Modify the required interface settings. (See "Configuring by Port List"
on page 117 for a description of the interface settings.)
5. Click Apply.

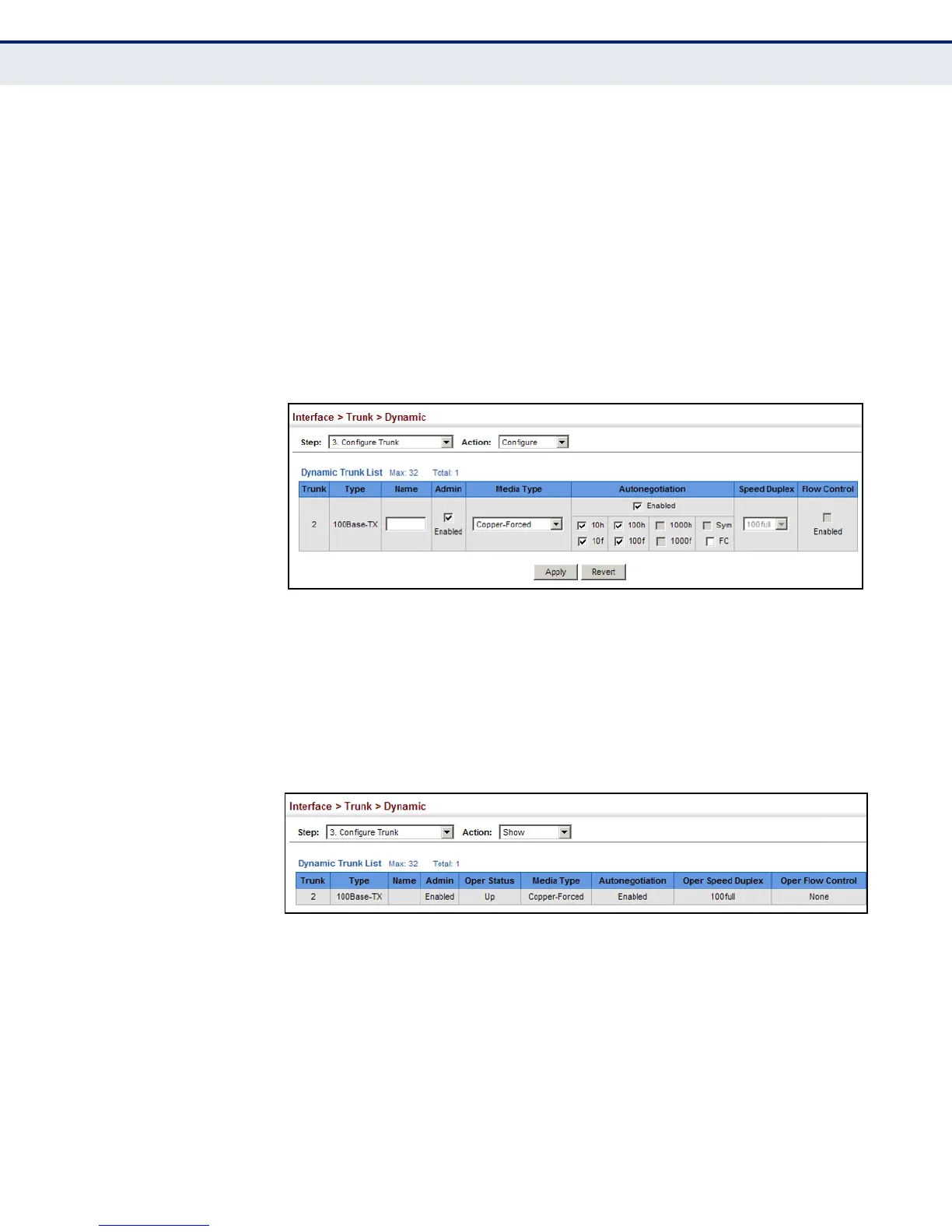

Figure 47: Configuring Connection Settings for Dynamic Trunks
To display connection parameters for a dynamic trunk:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Trunk from the Step List.
3. Select Show from the Action List.
Figure 48: Displaying Connection Parameters for Dynamic Trunks
