C
HAPTER
6
| VLAN Configuration
IEEE 802.1Q VLANs
– 159 –
Modify
◆ VLAN ID – ID of configured VLAN (1-4093).
◆ VLAN Name – Name of the VLAN (1 to 32 characters).
◆ Status – Enables or disables the specified VLAN.
Show
◆ VLAN ID – ID of configured VLAN.
◆ VLAN Name – Name of the VLAN.
◆ Status – Operational status of configured VLAN.
◆ Remote VLAN – Shows if RSPAN is enabled on this VLAN (see
"Configuring Remote Port Mirroring" on page 124).
WEB INTERFACE
To create VLAN groups:
1. Click VLAN, Static.
2. Select Add from the Action list.
3. Enter a VLAN ID or range of IDs.
4. Mark Enable to configure the VLAN as operational.
5. Click Apply.

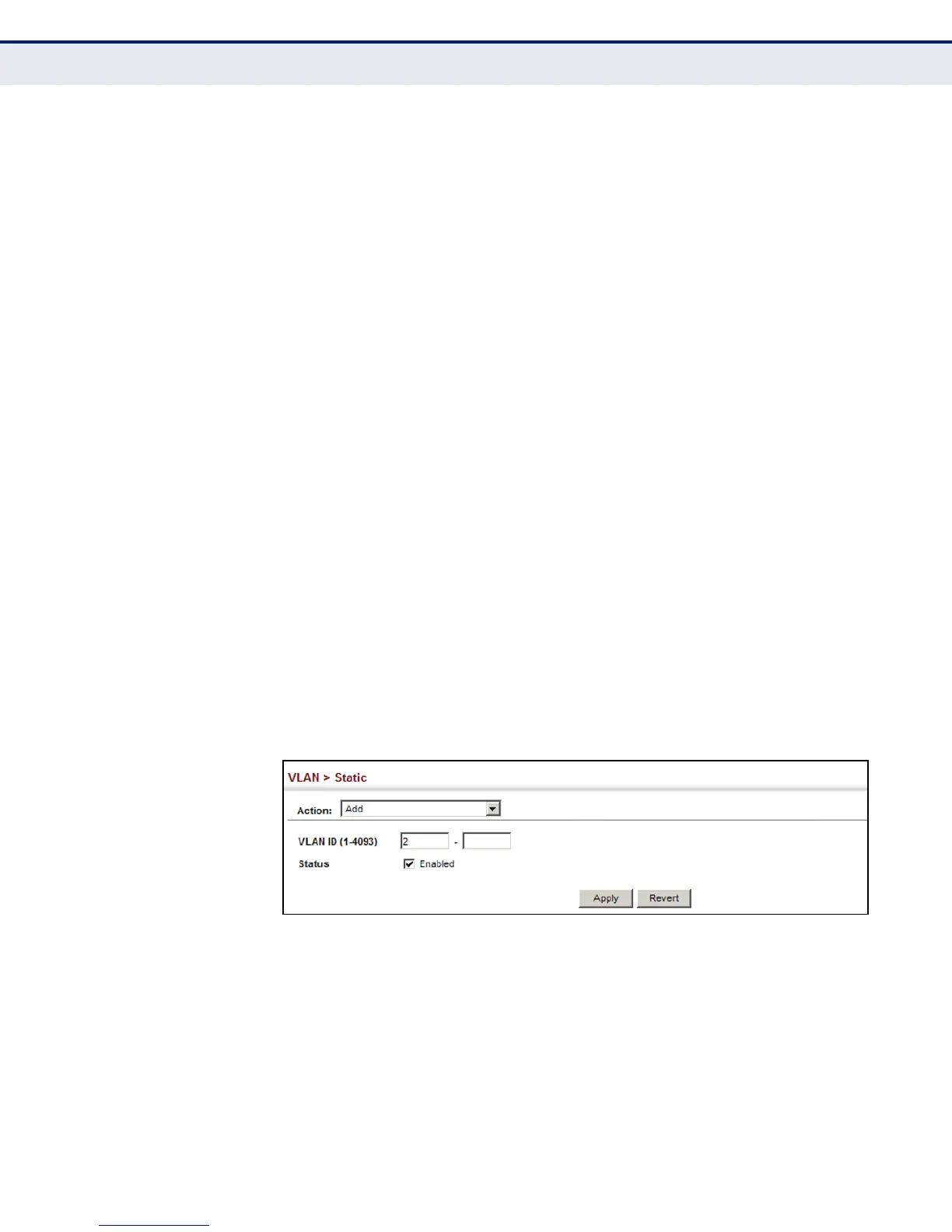

Figure 59: Creating Static VLANs
