C
HAPTER
8
| Spanning Tree Algorithm
Configuring Multiple Spanning Trees
– 211 –

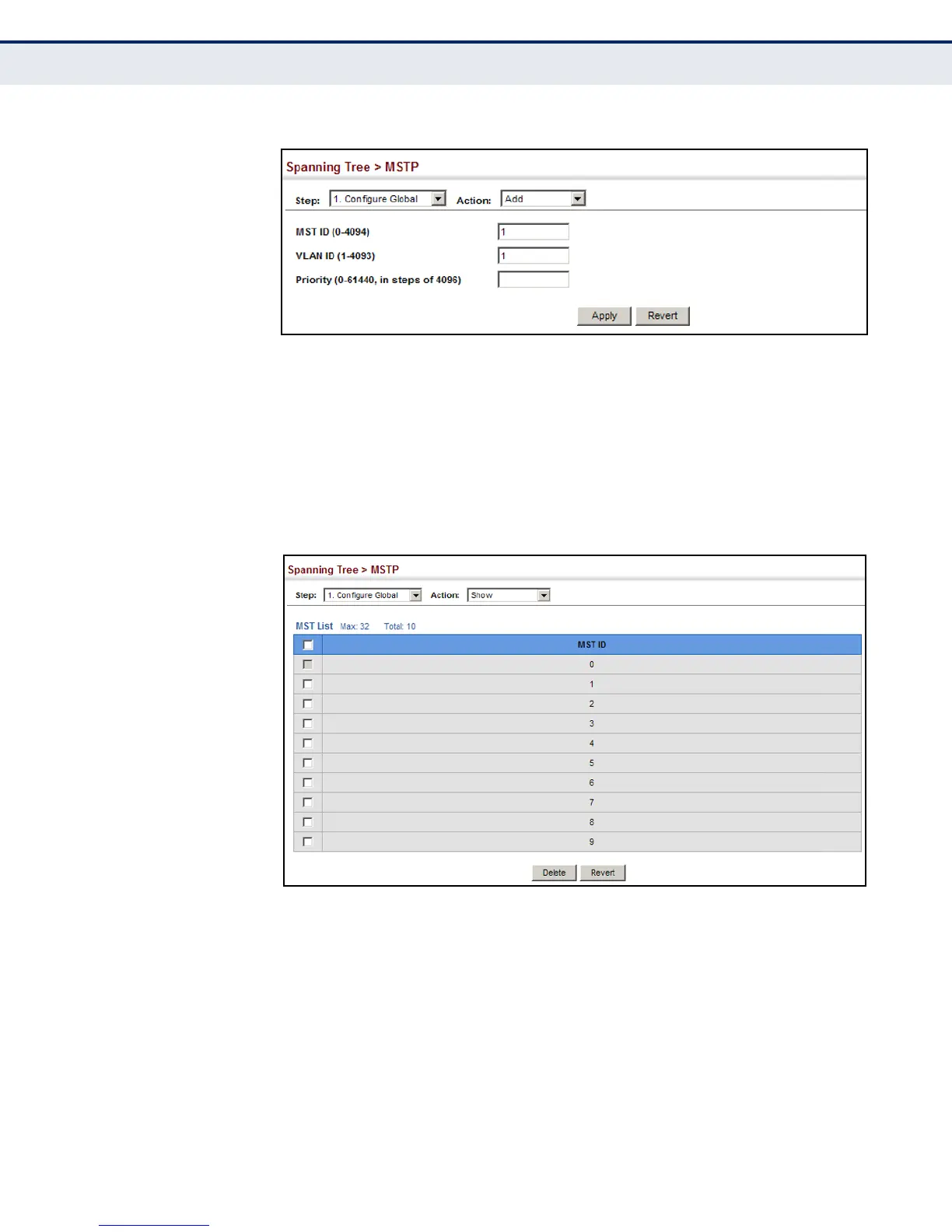

Figure 101: Creating an MST Instance
To show the MSTP instances:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Show from the Action list. The attributes displayed on this page
are described under "Displaying Global Settings for STA" on page 202.
Figure 102: Displaying STA Settings for an MST Instance
