C
HAPTER
15
| Basic Administration Protocols
Simple Network Management Protocol
– 378 –
To show the SNMP views of the switch’s MIB database:
1. Click Administration, SNMP.
2. Select Configure View from the Step list.
3. Select Show View from the Action list.

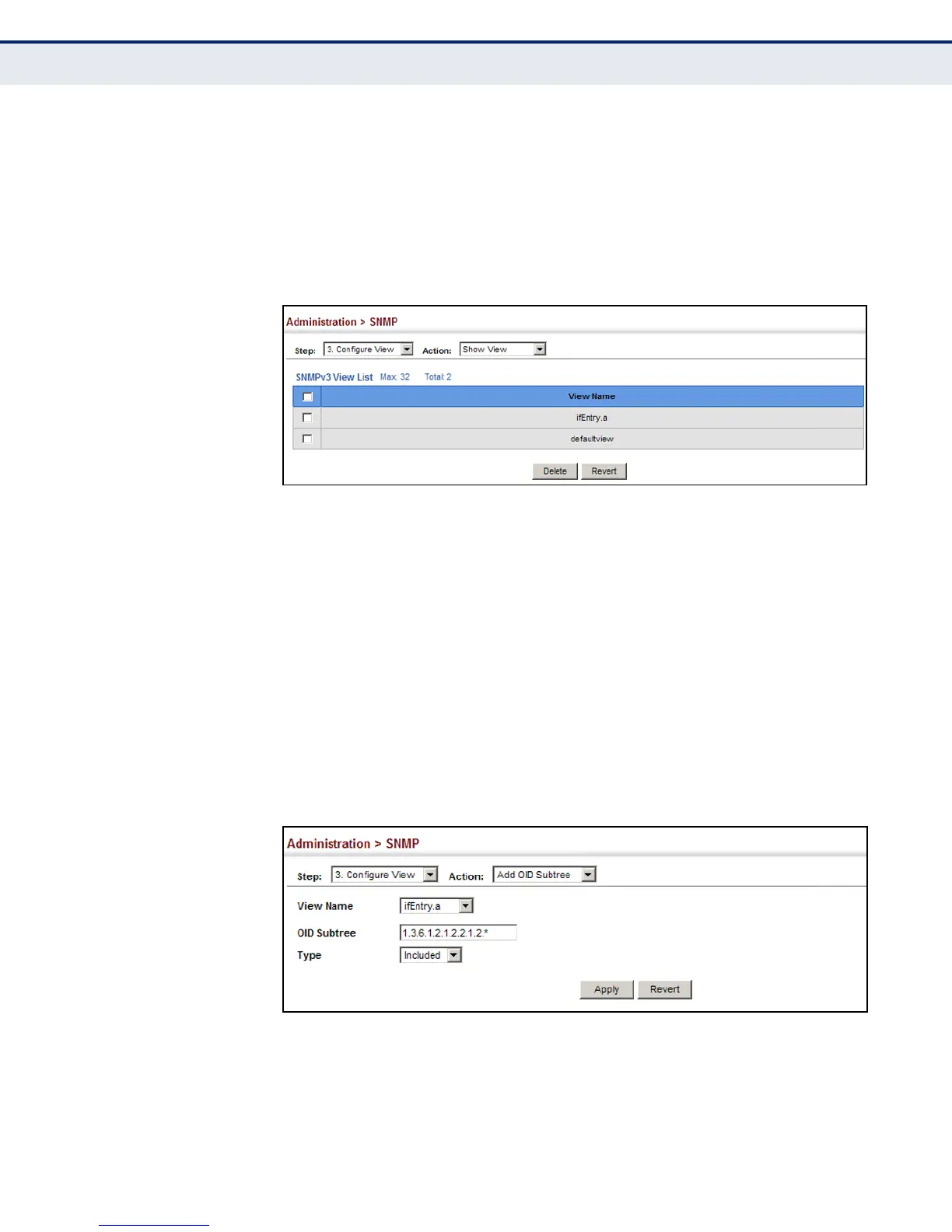

Figure 218: Showing SNMP Views
To add an object identifier to an existing SNMP view of the switch’s MIB
database:
1. Click Administration, SNMP.
2. Select Configure View from the Step list.
3. Select Add OID Subtree from the Action list.
4. Select a view name from the list of existing views, and specify an
additional OID subtree in the switch’s MIB database to be included or
excluded in the view.
5. Click Apply
Figure 219: Adding an OID Subtree to an SNMP View
