| Basic Management Tasks
Displaying Hardware/Software Versions
– 91 –
PARAMETERS
The following parameters are displayed:
Main Board Information
◆ Serial Number – The serial number of the switch.
◆ Number of Ports – Number of built-in ports.
◆ Hardware Version – Hardware version of the main board.
◆ Internal Power Status – Displays the status of the internal power
supply.
Management Software Information
◆ Role – Shows that this switch is operating as Master or Slave.
◆ EPLD Version – Version number of EEPROM Programmable Logic
Device.
◆ Loader Version – Version number of loader code.
◆ Diagnostics Code Version – Version of Power-On Self-Test (POST)
and boot code.
◆ Operation Code Version – Version number of runtime code.
WEB INTERFACE
To view hardware and software version information, Click System, then
Switch.

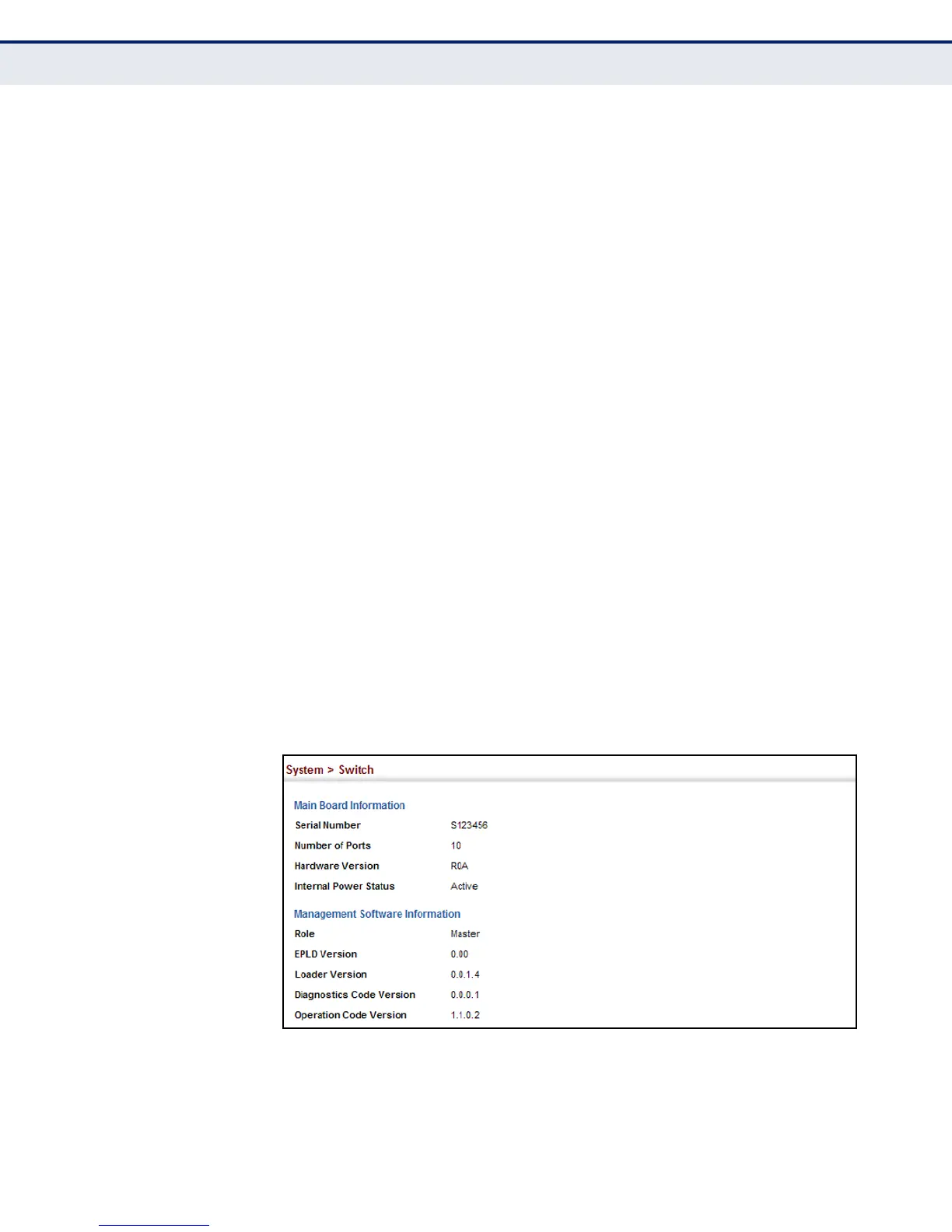

Figure 4: General Switch Information
