1.5.3 HemoSphere Oximetry Cable

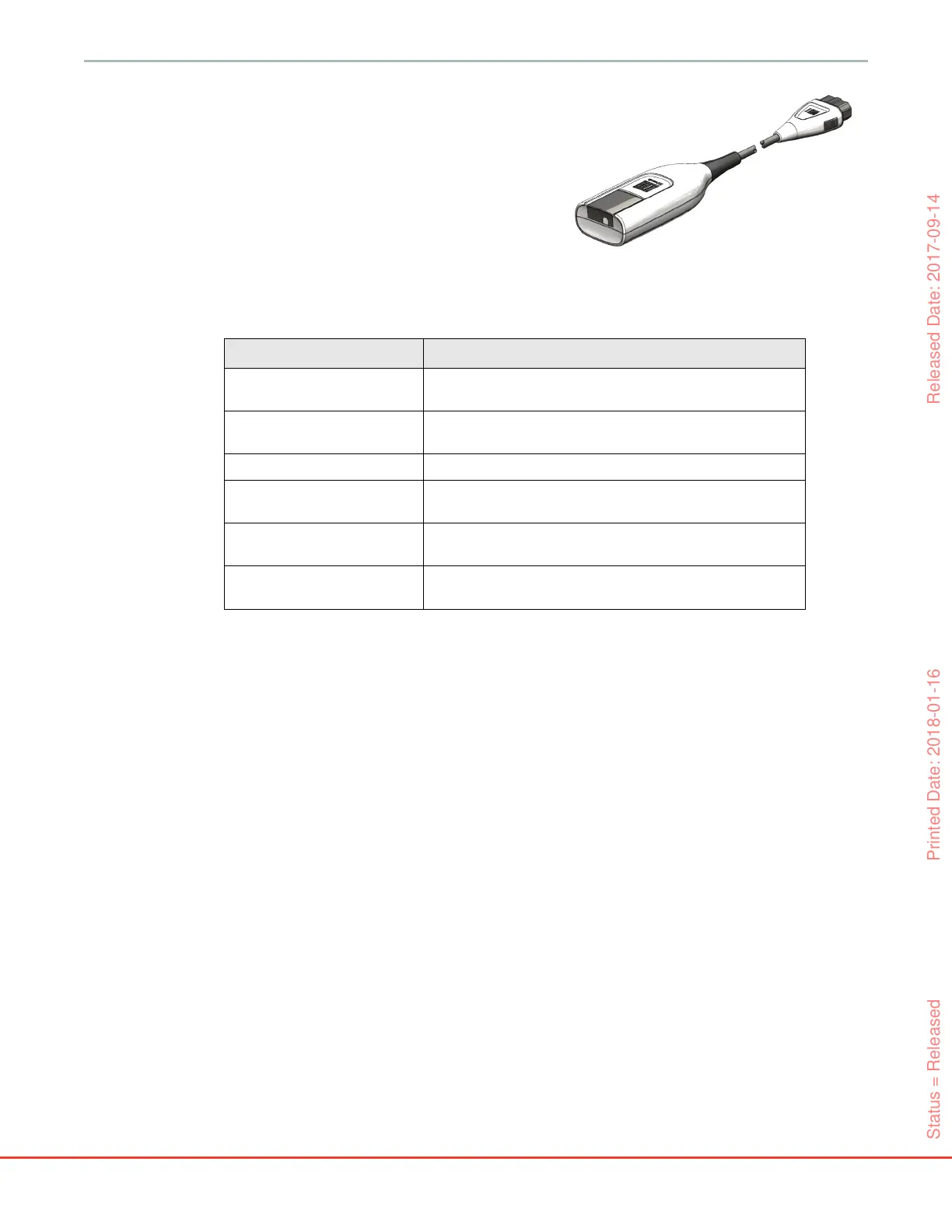

The HemoSphere oximetry cable enables mixed venous
oxygen saturation (SvO
2
) or central venous oxygen saturation
(ScvO
2
) monitoring with a compatible Edwards oximetry
catheter. The HemoSphere oximetry cable plugs into a
monitoring cable port and can be used in combination with
other hemodynamic monitoring technologies. For more
information on oximetry monitoring, see chapter 11, Oximetry
Monitoring. Table 1-8 lists the parameters available while using
the HemoSphere oximetry cable.
1.5.4 Documentation and Training
Available documentation and training for the HemoSphere advanced monitor includes:
• HemoSphere Advanced Monitor Operator’s Manual
• HemoSphere Advanced Monitor Quick Start Guide
• HemoSphere Swan-Ganz Module Instructions for Use
• HemoSphere Pressure Cable Instructions for Use
• HemoSphere Pressure-Out Cable Instructions for Use
• HemoSphere Oximetry Cable Instructions for Use
• HemoSphere Battery Instructions for Use
• HemoSphere Roll Stand Instructions for Use
• HemoSphere Oximetry Cradle Instructions for Use
Instructions for Use are included with HemoSphere Advanced Monitor components. See table B-1,
“HemoSphere advanced monitor components,” on page 195. For more information on how you can receive
training or available documentation for the HemoSphere advanced monitor, contact your local Edwards
representative or Edwards Technical Support. See appendix F, System Care, Service and Support..
Table 1-8 HemoSphere oximetry cable parameters description
Parameter Description
central venous oximetry
(ScvO
2
)
venous oxygen saturation as measured in the superior
vena cava
mixed venous oximetry
(SvO
2
)
venous oxygen saturation as measured in the pulmonary
artery
oxygen consumption (VO
2
) the amount of oxygen used by the body per minute
estimated oxygen
consumption (VO
2
e)
an estimate of the amount of oxygen used by the body per
minute (ScvO
2
monitoring only)
oxygen consumption index
(VO
2
I)
the amount of oxygen used by the body per minute indexed
against body surface area (BSA)
estimated oxygen
consumption index (VO
2
Ie)
an estimate of the amount of oxygen used by the body per
minute indexed against body surface area (BSA)
Status = Released Printed Date: 2018-01-16 Released Date: 2017-09-14

Edwards HemoSphere Specifications

General

Technology	Advanced hemodynamic monitoring
Connectivity	Ethernet, USB
Power Supply	100–240 VAC, 50/60 Hz
Parameters Measured	Cardiac output, stroke volume, systemic vascular resistance
Trending	Yes
Alarms	Configurable alarms for various parameters
Data Storage	Internal memory
Applications	Critical care
Display	Touchscreen
