5.3.8.2 Parameter Boxes
Each small parameter box displays:
• Parameter name
• Parameter units
• Parameter value (if available)
• Clinical target status indicator (if a value is available)
• SVV indicator (when applicable)
If the parameter is in a fault state, the value is blank, indicating it is or was unavailable at the time of the
display.
5.3.8.3 Setting Targets and Entering Parameter Values
To change the target settings or enter a value, touch a parameter to bring up the target/enter popup. The
physio relationship target/enter popup will be displayed when the following physio relationship small
parameter boxes are touched:
• HGB
• SpO
2
• SvO
2
/ScvO
2
(when no HemoSphere oximetry cable measurement is available)
When the value is accepted, a new time-stamped historic physio relationship record is created. It includes:
• Current continuous parameter data
• The entered value and any derived calculated values.
The historic physio relationship screen is shown with the newly created record; you can then enter the rest
of the manually entered values to calculate any derived values.

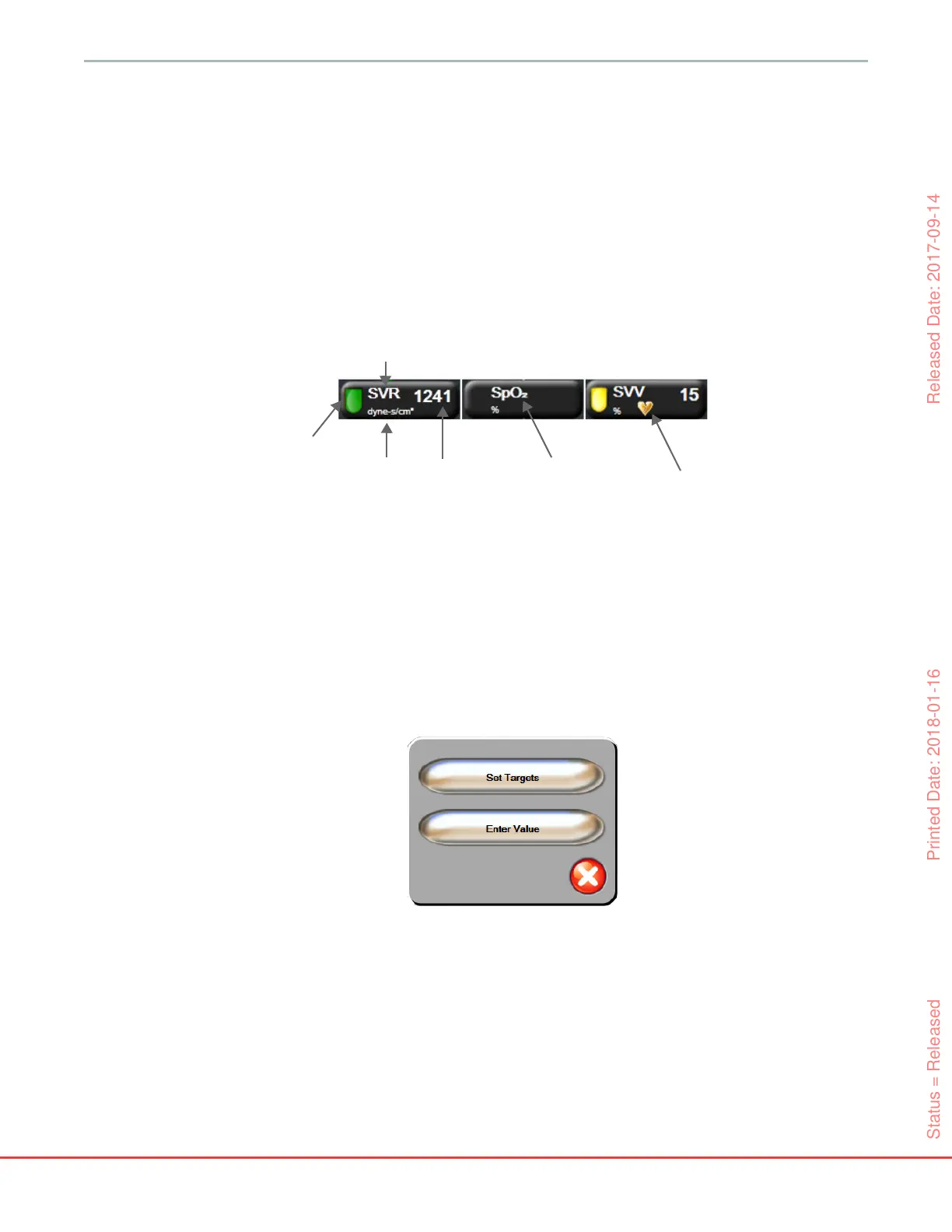

Figure 5-16 Physio relationship parameter boxes
Figure 5-17 Physio relationship target/enter popup
Parameter
Units Value
Target
status
indicator
Faulted or
value not
available
SVV filtering
exceeded
indicator
