HemoSphere Advanced Monitor 13 Troubleshooting
13.3 Pressure Cable Communication
The pressure cable LED indicates the status of the pressure sensor or transducer..
13.4 HemoSphere Advanced Monitor Error Messages
13.4.1 System Faults/Alerts

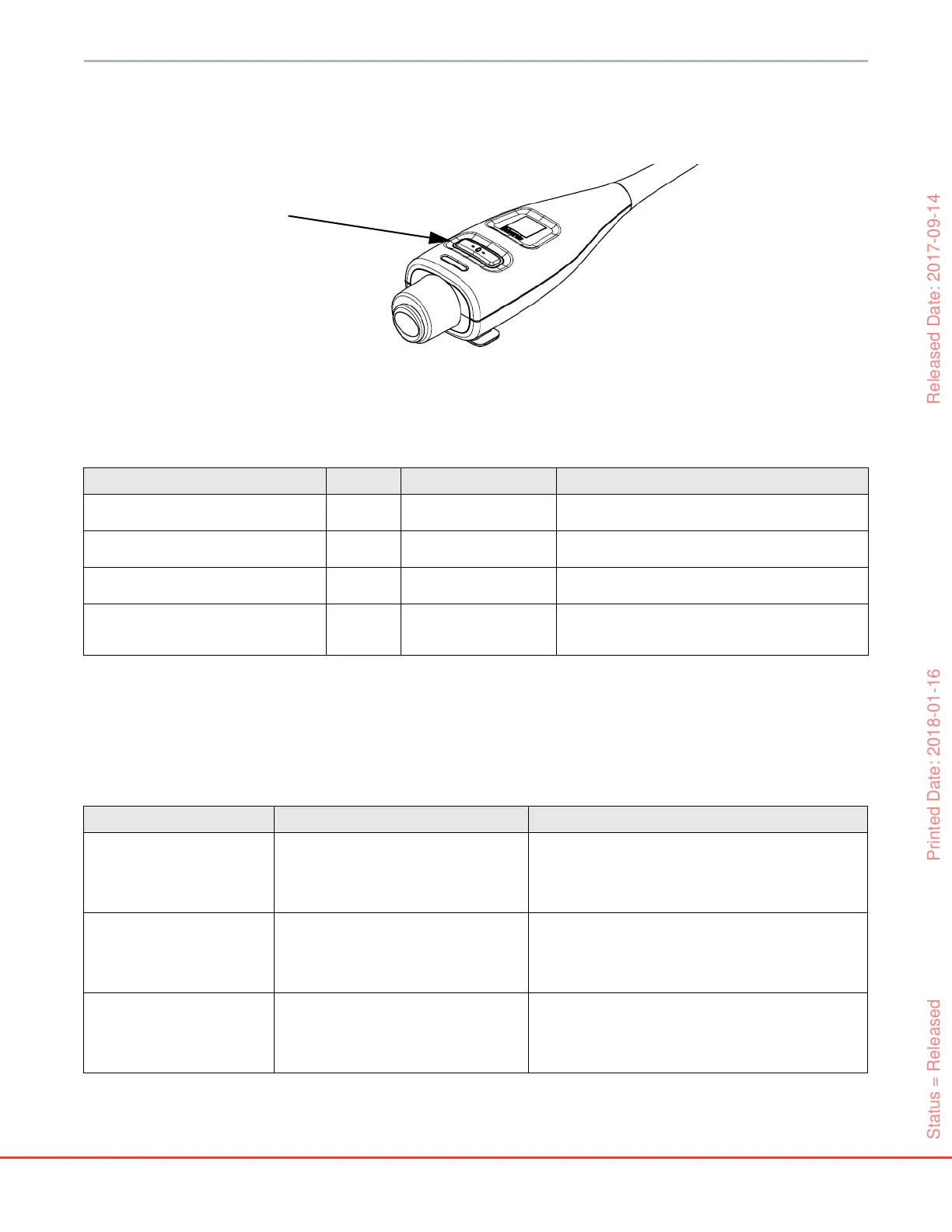

Figure 13-2 Pressure cable LED indicator
Table 13-3 Pressure cable communication light
Condition Color Light Pattern Suggested Action
No pressure sensor/transducer
connected
No light Solid OFF None
Pressure sensor/transducer connected
but not yet zeroed
Green Flashing ON/OFF Zero the pressure sensor to begin monitoring
Pressure sensor/transducer zeroed
Green Solid ON None. The connected pressure sensor can actively
monitor pressure signal
Pressure sensor/transducer medium
priority technical alarm
Yellow Flashing ON/OFF Refer to the screen to ascertain the type of technical
fault. Use the help menu or tables below for the
appropriate suggested action
Table 13-4 System faults/alerts
Message Possible causes Suggested actions
Fault: Module Slot 1 –
Hardware Failure
Module 1 is not inserted properly
Connection points on slot or module are
damaged
Reinsert the module
Check for bent or broken pins
Try switching to module slot 2
If problem persists, contact Edwards Technical Support
Fault: Module Slot 2 –
Hardware Failure
Module 2 is not inserted properly
Connection points on slot or module are
damaged
Reinsert the module
Check for bent or broken pins
Try switching to module slot 1
If problem persists, contact Edwards Technical Support
Fault: Cable Port 1 – Hardware
Failure
Cable is not inserted properly
Connection points on cable or port are
damaged
Reinsert the cable
Check for bent or broken pins
Try switching to cable port 2
If problem persists, contact Edwards Technical Support
