HemoSphere Advanced Monitor 3 Installation and Setup

3.2.2 Monitor Rear

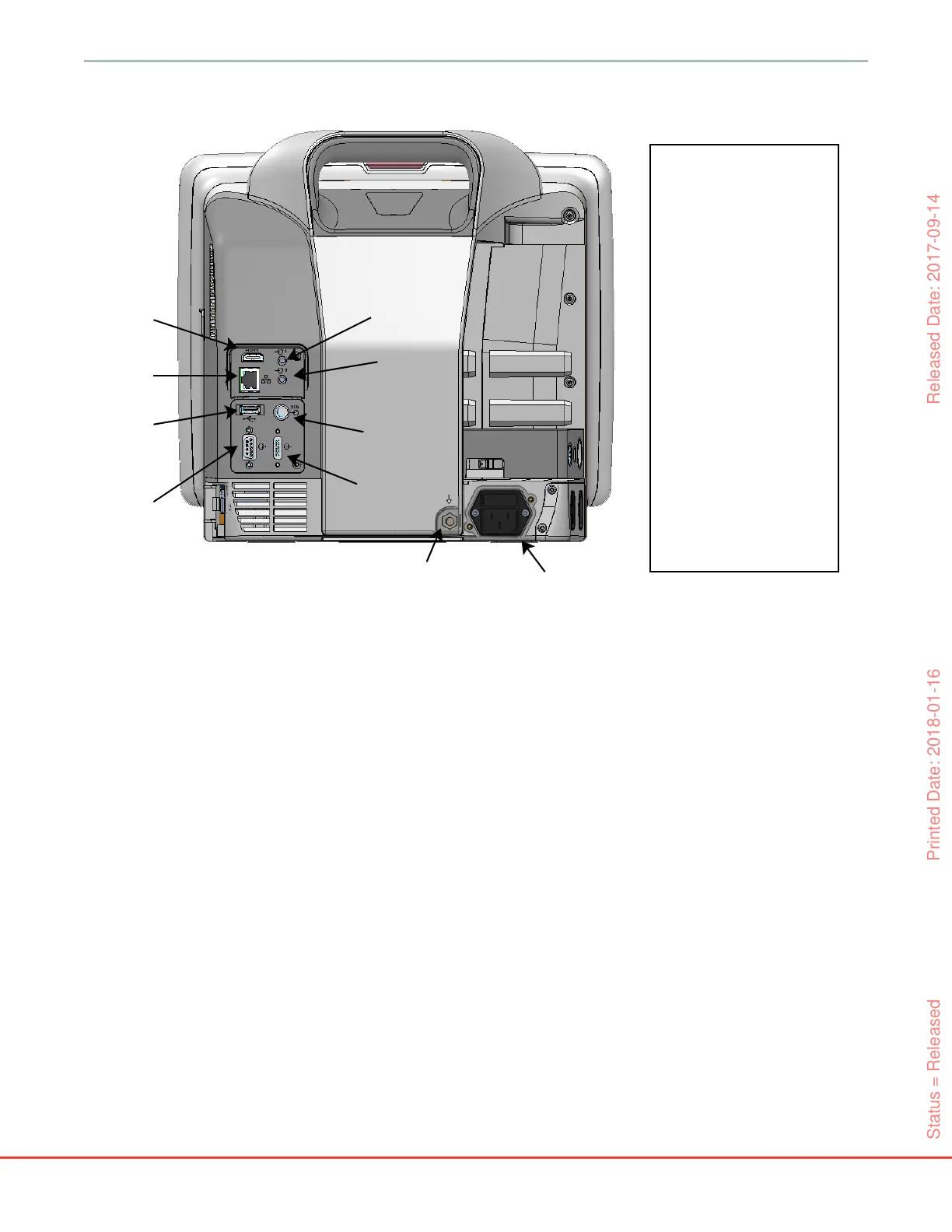

Figure 3-2 HemoSphere advanced monitor rear view (shown with HemoSphere Swan-Ganz

module)





















 mains power cord

connection (power

entry cover

removed)

 HDMI port

 Ethernet port

 USB port

 COM1 serial port

connector (RS-232)

 Analog input 1

 Analog input 2

 ECG input

 pressure output

 equipotential

terminal stud
