53
HemoSphere Advanced Monitor 4 HemoSphere Advanced Monitor Quick Start
4.1 HemoSphere Swan-Ganz Module Cardiac Output Monitoring
Refer to figure 4-1 for HemoSphere Swan-Ganz module monitoring connections.
1 Ensure that the HemoSphere advanced monitor is off and then insert the HemoSphere Swan-
Ganz module into the monitor. The module will click when properly engaged.
2 Press the power button to turn on the HemoSphere advanced monitor. All functions are accessed
through the touch screen.
3 Select Continue Same Patient button or New Patient button and enter new patient data.
4 Connect the patient CCO cable to the HemoSphere Swan-Ganz module.
5 Select the Invasive monitoring mode button on the Monitoring Mode Selection window.
6 Touch the home icon to begin monitoring.
7 Touch the monitor screen selection icon to select the desired monitoring screen view.
8 Touch outside of a parameter globe to select the desired key parameter from the parameter popup.
9 Touch within a parameter globe to adjust Alarms/Targets.
10 Depending on catheter type, continue to step 11 in one of the following sections:
• section 4.1.1 for CO monitoring
• section 4.1.2 for iCO monitoring
• section 4.1.3 for EDV monitoring

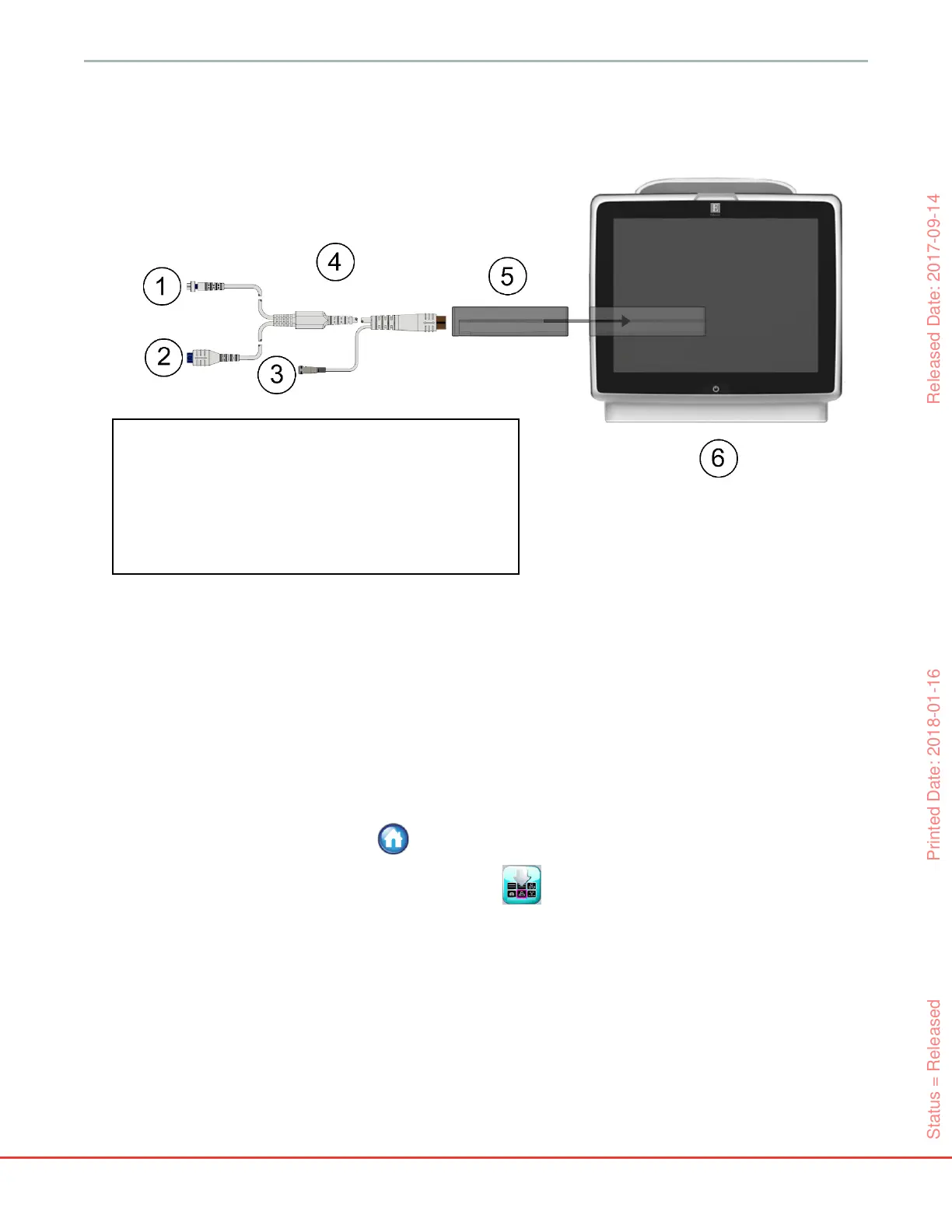

Figure 4-1 HemoSphere Swan-Ganz module monitoring connection overview
thermistor connection
thermal filament
connection
injectate temperature
probe connection
patient CCO cable
HemoSphere Swan-
Ganz module
HemoSphere advanced
monitor
Status = Released Printed Date: 2018-01-16 Released Date: 2017-09-14
