HemoSphere Advanced Monitor 5 Navigating the HemoSphere Advanced Monitor
5.2 Navigation Bar
The navigation bar is present on most screens. Exceptions are the startup screen and screens indicating the
HemoSphere advanced monitor has stopped monitoring.
Start CO Monitoring. While monitoring with the HemoSphere Swan-Ganz module, the start CO
monitoring icon allows the user to initiate CO monitoring directly from the navigation bar. See Continuous
Cardiac Output on page 120 .
Stop CO Monitoring. The stop monitoring icon indicates that CO monitoring using the HemoSphere Swan-
Ganz module is underway. The user can immediately stop monitoring by touching this icon.
Zero & Waveform. This icon allows the user to access the Zero & Waveform screen directly from the
navigation bar. SeeZero & Waveform Screen on page 141.
GDT Tracking. This button displays the GDT Tracking Menu. Enhanced parameter tracking allows a user to
manage key parameters in the optimal range. See Enhanced Parameter Tracking
on page 164.

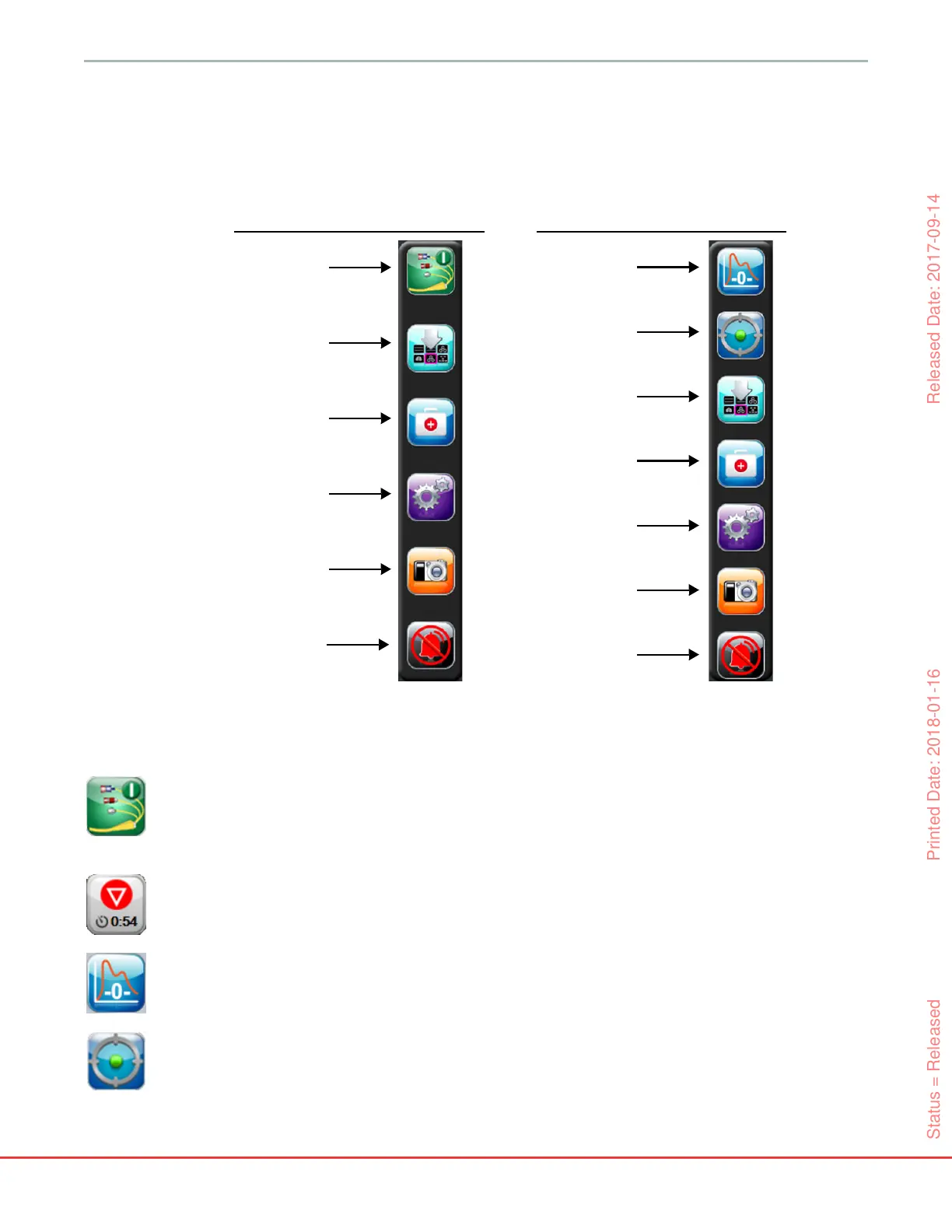

Figure 5-2 Navigation bar
Start/Stop
Monitoring
Monitor
Screen
Selection
Clinical
Actions
Settings
Snapshot
Silence
Audible
Alarm
GDT
Tracking
Monitor
Screen
Selection
Clinical
Actions
Snapshot
Zero &
Waveform
Silence
Audible
Alarm
Settings
HemoSphere Swan-Ganz module
monitoring
HemoSphere pressure cable
monitoring
