A.3. Optimum Illumination of Detector Crystals FLIR Detection
A.3 Optimum Illumination of Detector Crystals
15
15
cm (6 in)
cm (6 in)
S
ource
D
etectorCrystals (

)

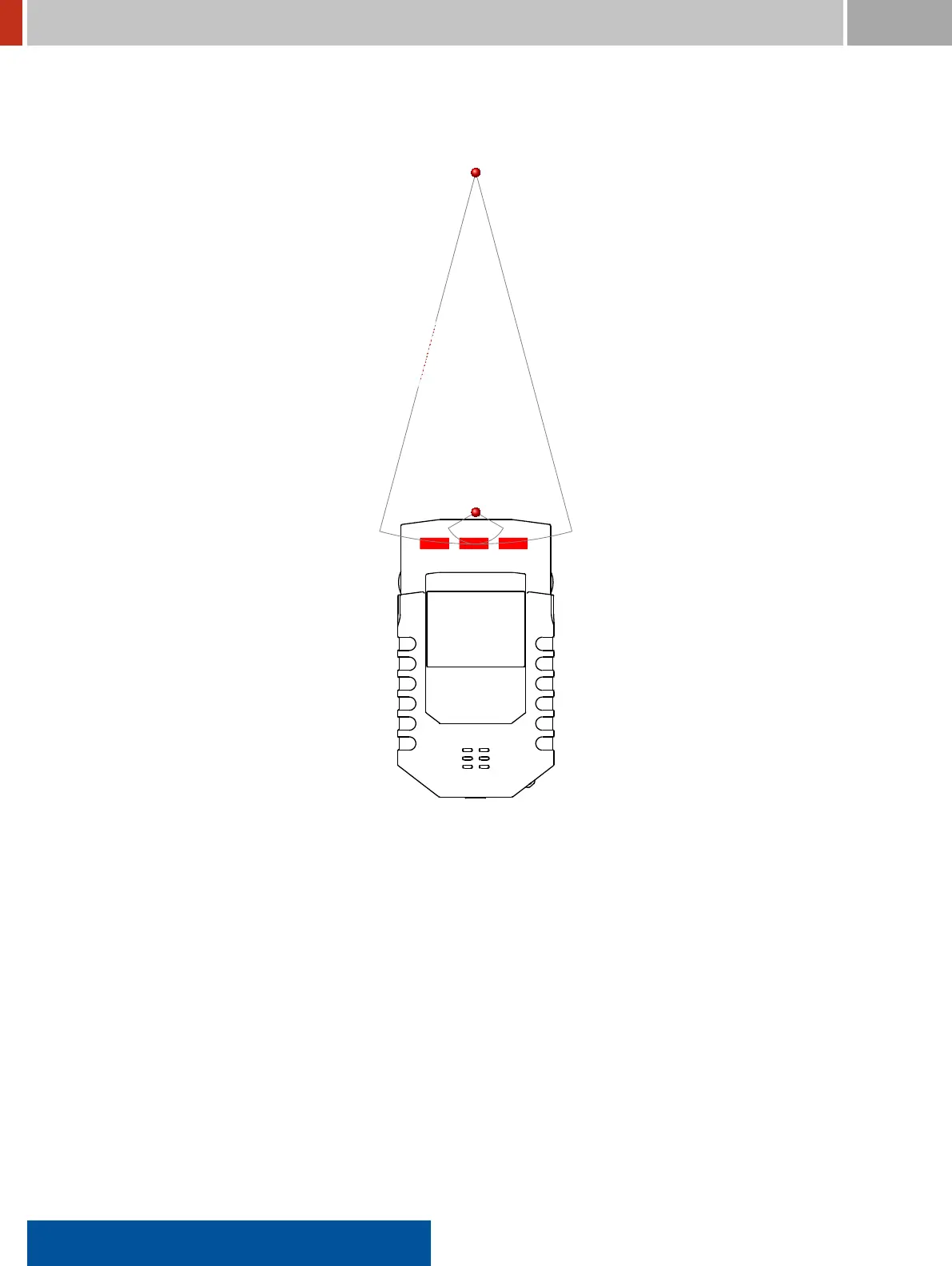

Figure 239. Optimal dose rate calculation needs a uniform illumination of the three detector crystals, for which
the source to detector distance should be at least 15 cm (6 in) (drawn to scale).
242 identiFINDER
®
R300/en/2014.4(13623)/Feb2015
