A
-
The
connector
for
one
PCIe
cable
facing
the
outside
of
the
CPU
memory
unit
and
the
other
two
facing
the
front
of
the
CPU
memory
unit

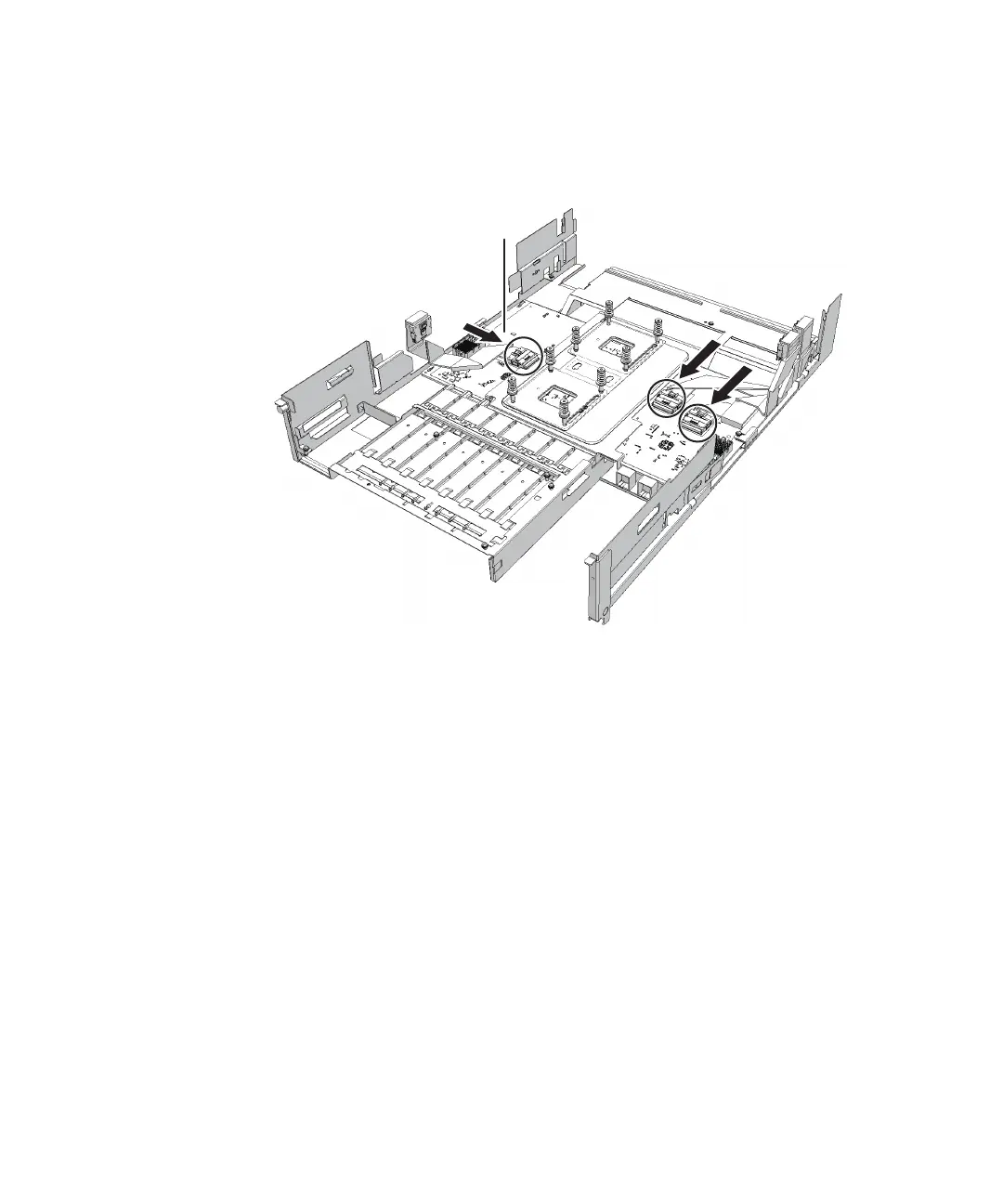

Figure
9-43
　　
Installing
the
PCIe
cables
(with
the
connector
for
one
PCIe
cable
facing
the
outside
and
the
two
facing
the
front
of
the
CPU
memory
unit)
15.
Insta ll
the
sheet
(A
in
the
figure).
Chapter
9
　
Maintaining
the
CPU
Memory
Unit/Memory 223
