Note -
Do not tilt the CPU memory unit board when installing it. The board may be damaged
by hitting the back side of the board against a protruding part or the frame guide.

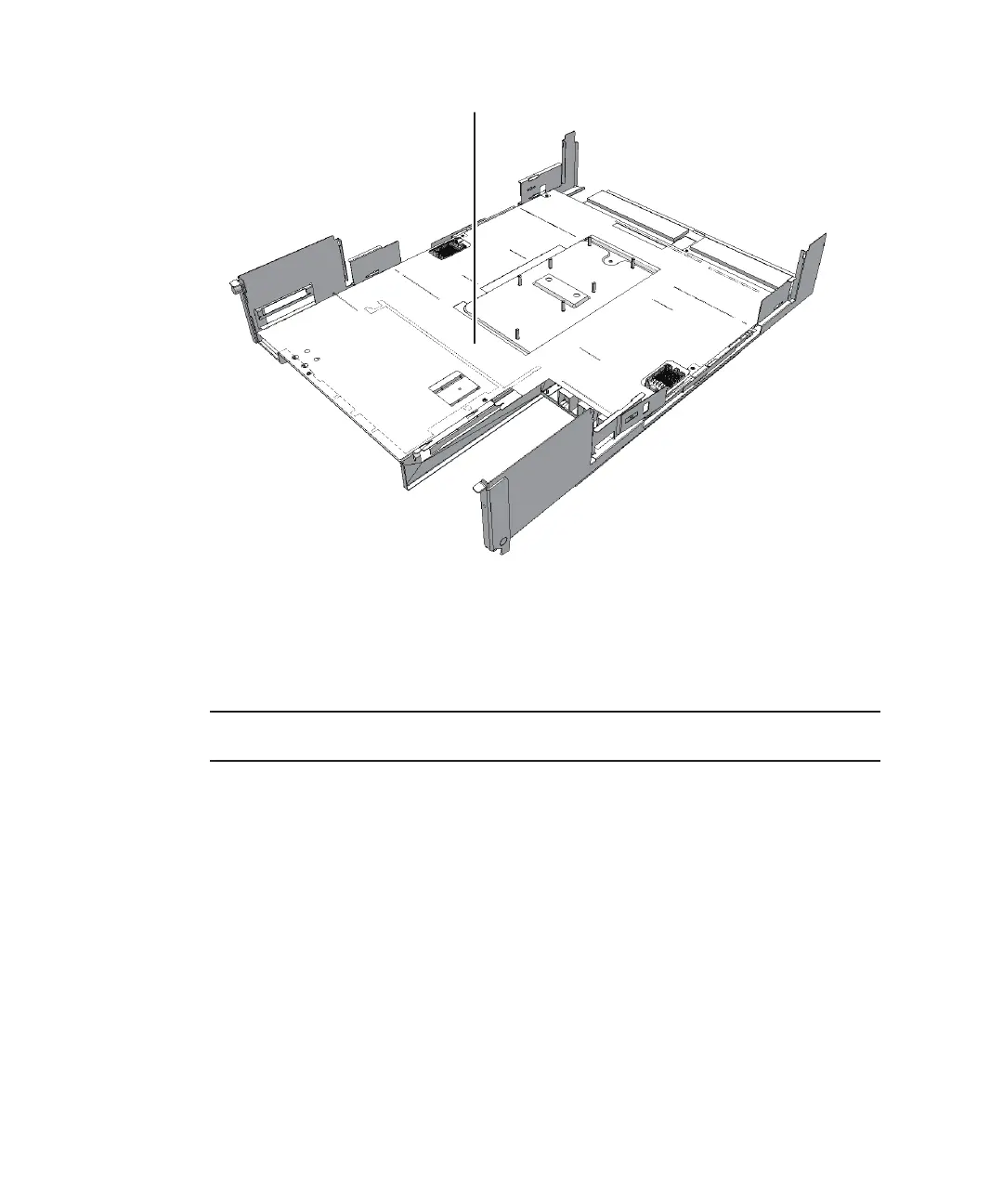

Figure 9-44
Installing sheet
16.
Install the CPU memory unit board and secure it to the frame with screws.
Hold the connector unit at the center of the CPU memory unit board and install
it on the frame in the horizontal position.
For how to hold the CPU memory unit board, see Figure
9-45 and Figure 9-46.
