C
A
B

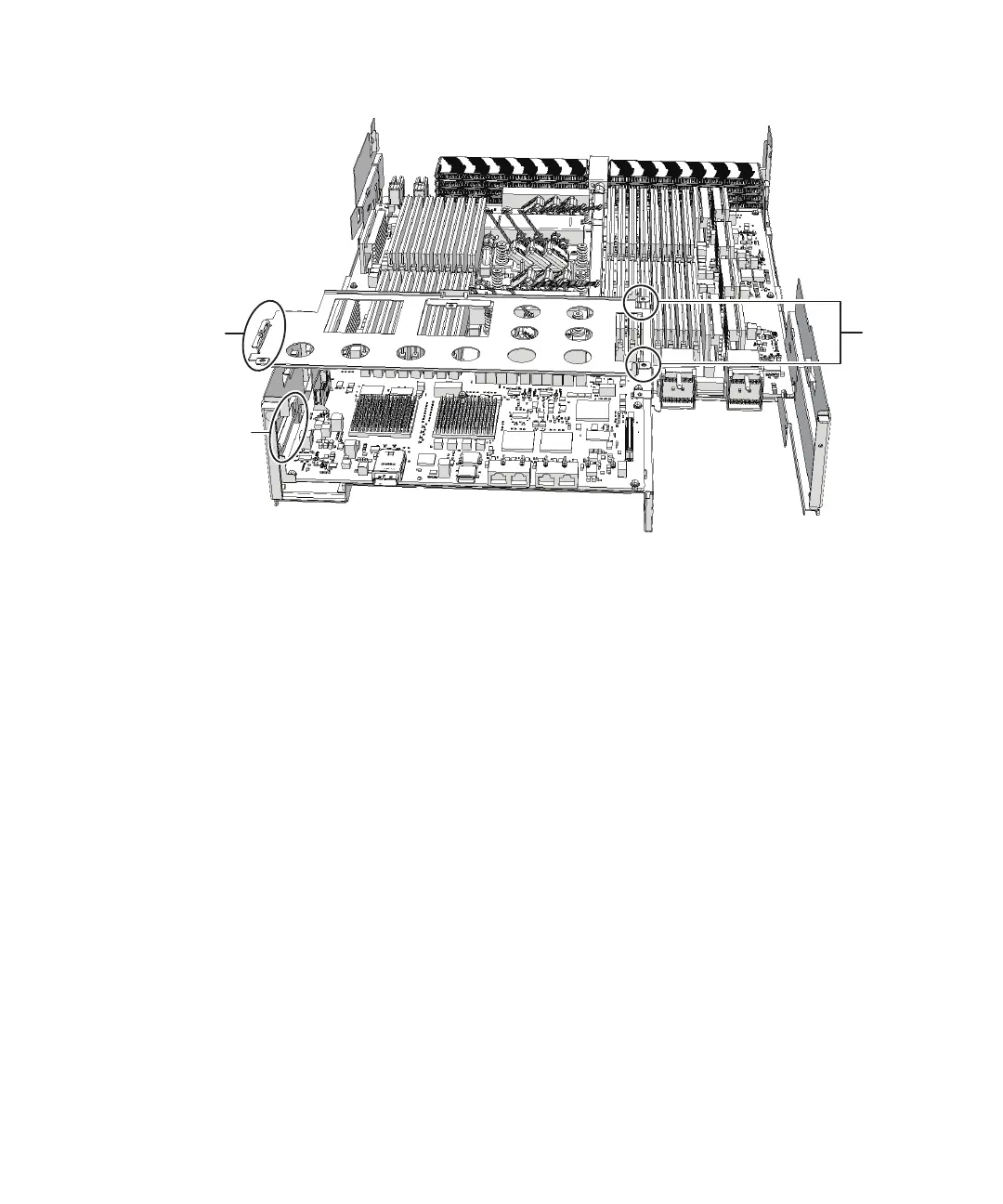

Figure
9-51
　　
Installing
the
XSCF
mount
(for
the
SPARC
M10-4S
with
a
FRAME-B
CPU
memory
unit)
19.
Install
the
XSCF
board.
-
For
the
SPARC
M10-4
with
a
FRAME-A/FRAME-B
CPU
memory
unit
Insert
the
XSCF
board
into
guides
at
two
locations
(A
in
the
figure)
on
the
mount
(B
in
the
figure),
and
push
the
right
lever
of
the
mount
by
about
5
mm
(0.2
in.)
to
the
right
(C
in
the
figure)
to
attach
(E
in
the
figure)
the
connector
unit
(D
in
the
figure).
Then,
secure
it
with
one
screw
(F
in
the
figure).
Fujitsu
M10-4/Fujitsu
M10-4S/SPARC
M10-4/SPARC
M10-4S
Service
Manual
･
November
2014230
