Fujitsu M10-4 - Page 245

A
F
B
C
E
D

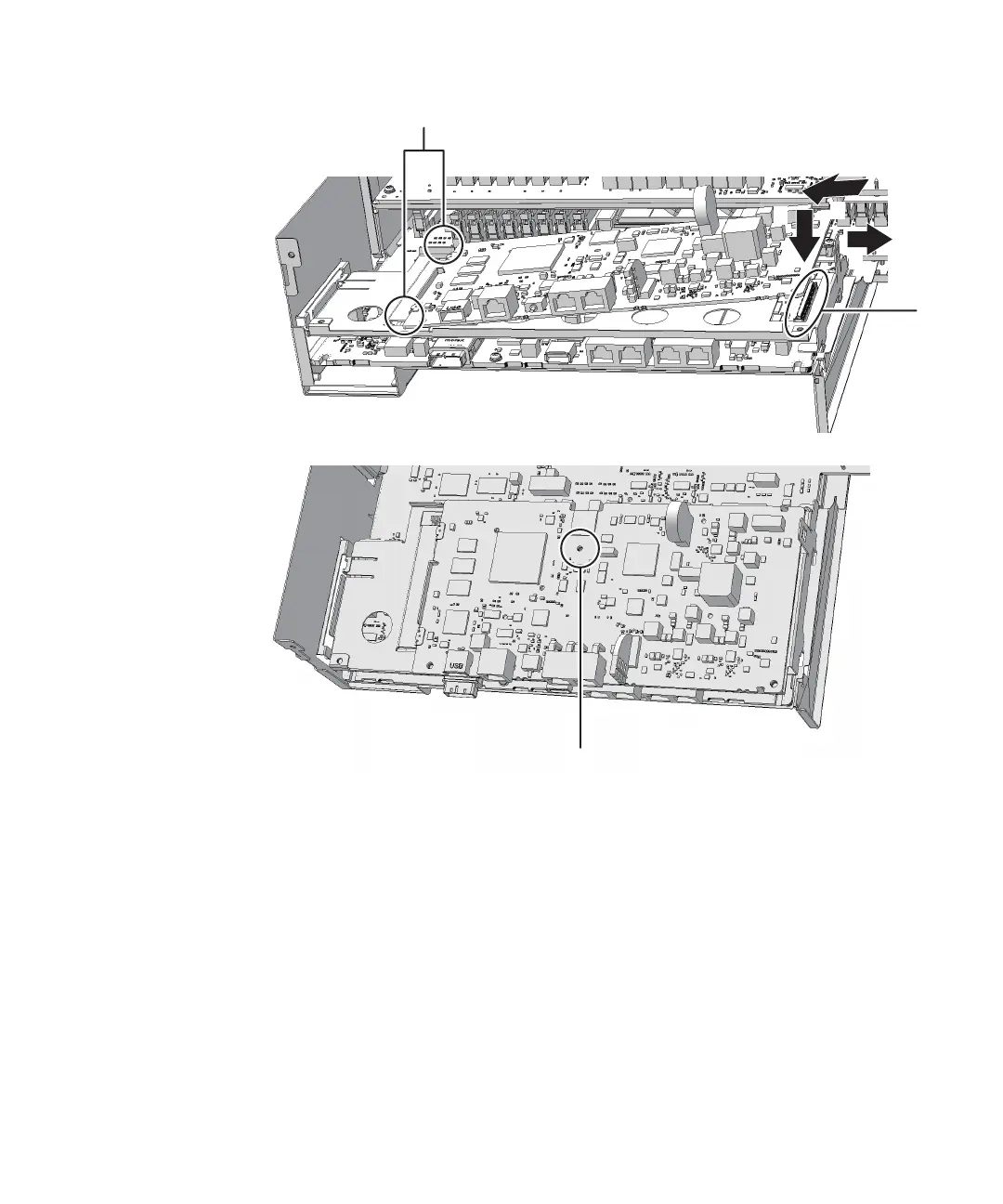

Figure 9-52
Installing the XSCF board (for the SPARC M10-4 with a FRAME-A/
FRAME-B CPU memory unit)
-
For the SPARC M10-4S with a FRAME-A/FRAME-B CPU memory unit
Insert the XSCF board into the left guide (A in the figure), and press down the
right connector unit (B in the figure) to
attach the connector. Then, fix it with
two screws.
