Push the lock spring inward to unlock the CMA stopper.
CAUTION
▶
In case of not enough space at the under side, unlock the CMA
stopper of the server below and pull out the CMA to the rear
side.

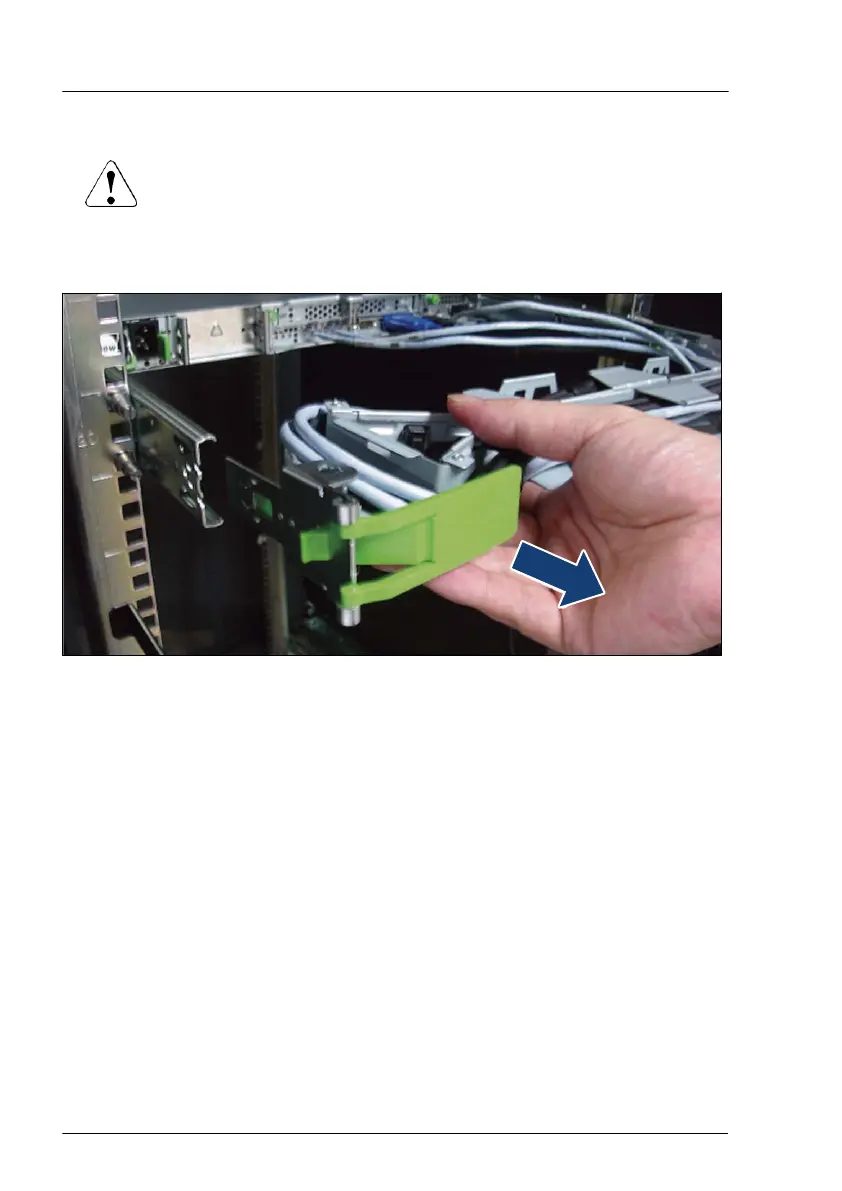

Figure 27: Removing the CMA stopper
▶
Remove the CMA stopper with the mounted crossbar
.
▶
Hold the CMA stopper
, the crossbar and the CMA including cables in the
one hand.
Power supply unit (PSU)
108 Upgrade and Maintenance Manual RX2520 M5
