"Getting access to the component" on page 47
.
▶
Release all HDD modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD module" on page 136.
CAUTION
The HDD modules need not to be removed.
▶
If you want to remove them nevertheless, check if all HDD
modules are uniquely identified so that you can reinsert them
into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD dummy module" on page
132.
▶
"Removing the air duct" on page
58.
▶
"Removing the fan holder" on page 60.
Removing a 3.5-inch HDD backplane
Note on removing a 3.5-inch HDD backplane
For easier access to the backplane screws at the bottom side, it could be
helpful to remove the CPU with the heat sink, see "Removing the heat sink" on
page 283.
CAUTION
Ensure that the CPU socket will not be damaged!
Best practice is to use a short screw driver:

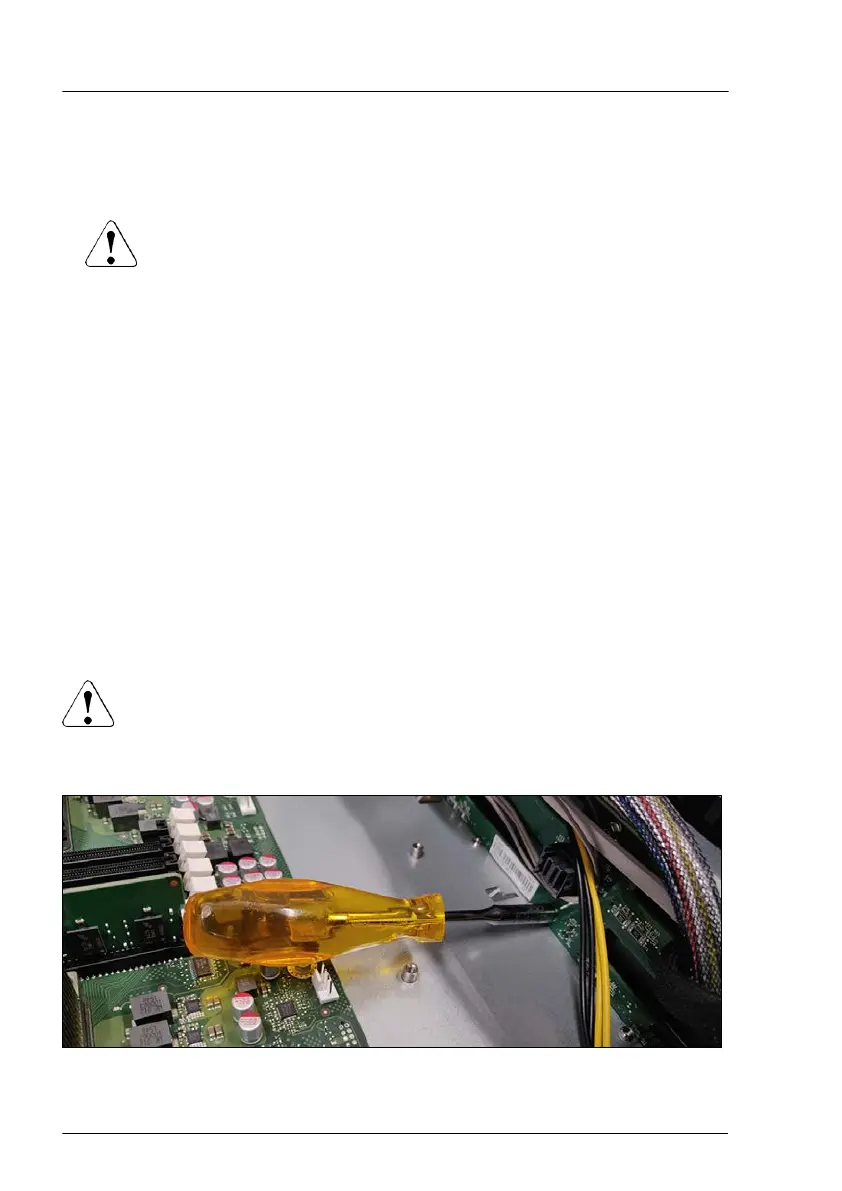

Figure 51: Short screw driver
Hard disk drive (HDD) / solid state disk (SSD)
140 Upgrade and Maintenance Manual RX2520 M5
