Fujitsu PRIMERGY RX2520 M5

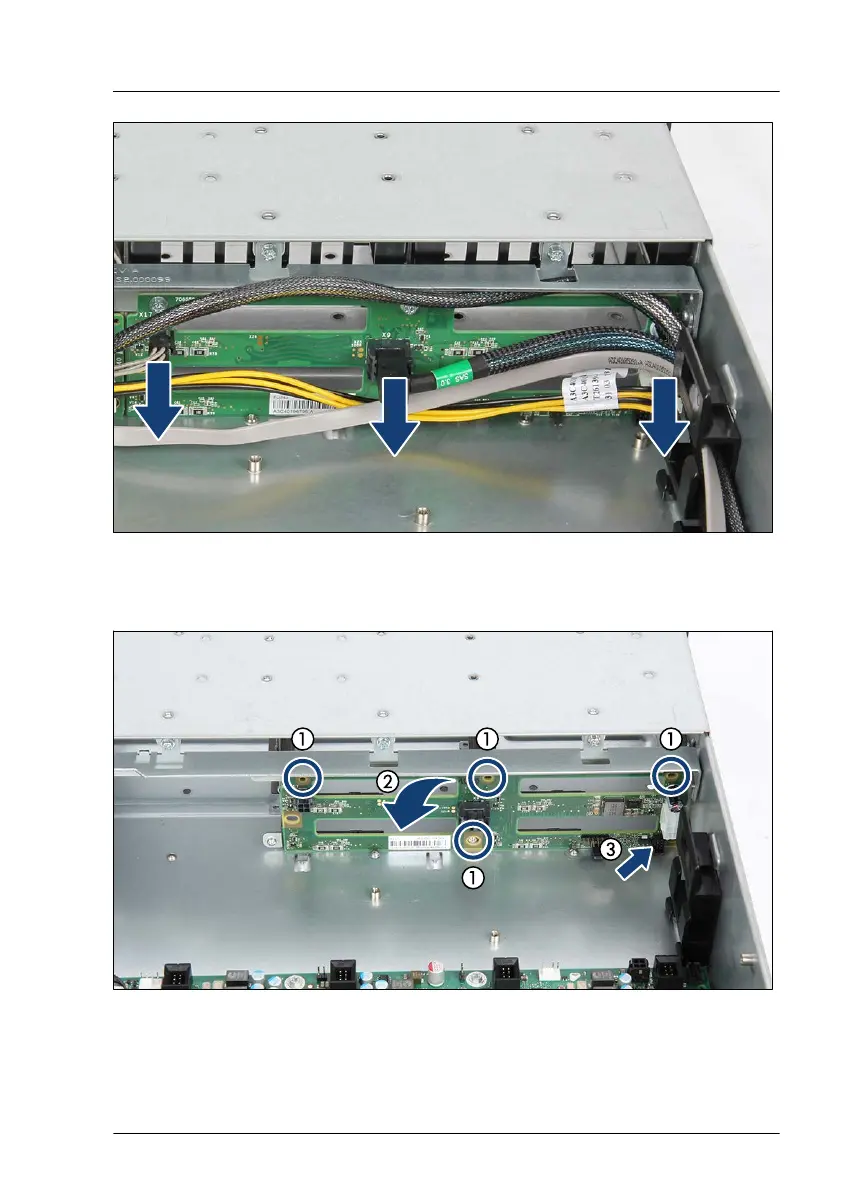

Figure 52: Disconnecting the cables from the backplane (example 4x 3.5-inch HDDs)
▶
Disconnect all cables from the backplane.
Figure 53: Removing the 3.5-inch HDD backplane (A)
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 141
