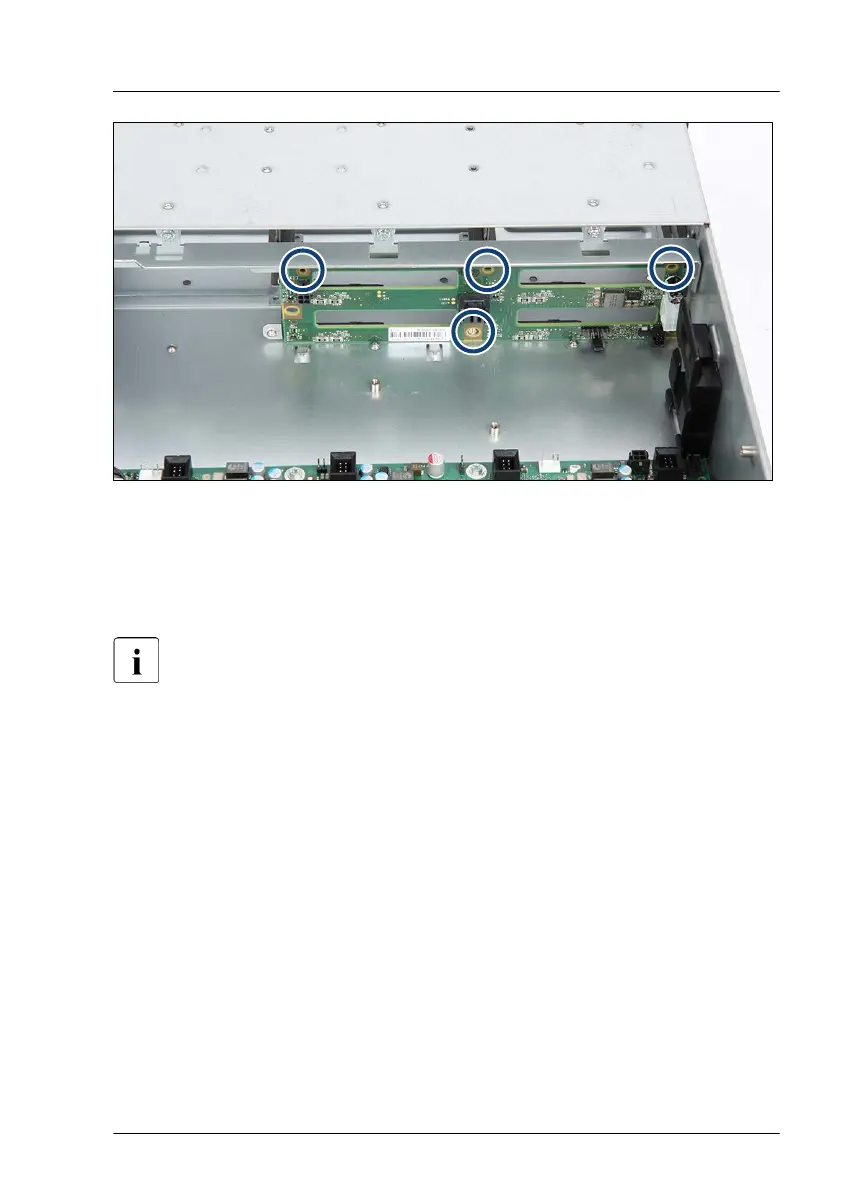

Figure 57: Installing the 3.5-inch HDD backplane (B)
▶
Fasten the backplane with four screws (see circles).
Connecting a 3.5-inch HDD backplane
For the cable plan, see "Appendix B" on page 463.
Hard disk drive (HDD) / solid state disk (SSD)
