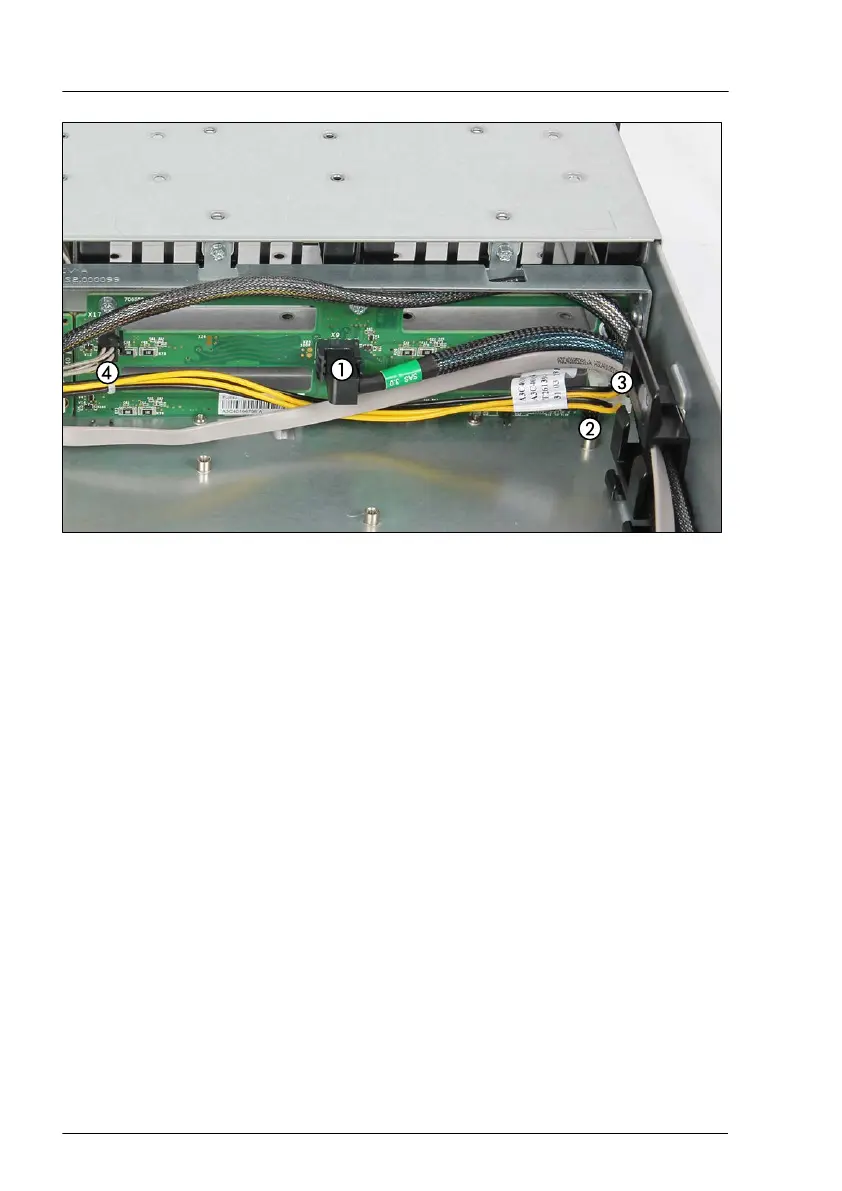

Figure 58: Connecting cables to the backplane (example 4x 3.5-inch HDDs)
▶
Connect the following cables to the HDD backplane:
1 SAS cable to connector "X9"
2 If applicable, OOB cable to connector "X11"
3 Power cable to connector "X40"
4 If applicable, ODD power cable to connector "X17" (only for the first
backplane)
Concluding steps
▶
If applicable "Installing the CPU and heat sink" on page
288
.
▶
"Installing the fan holder" on page 61.
▶
"Installing the air duct" on page 59.
▶
Install HDD modules or HDD dummy modules into all HDD bays, see
"Installing a 3.5-inch HDD module" on page 134 and "Installing a 3.5-inch
dummy module" on page 136.
