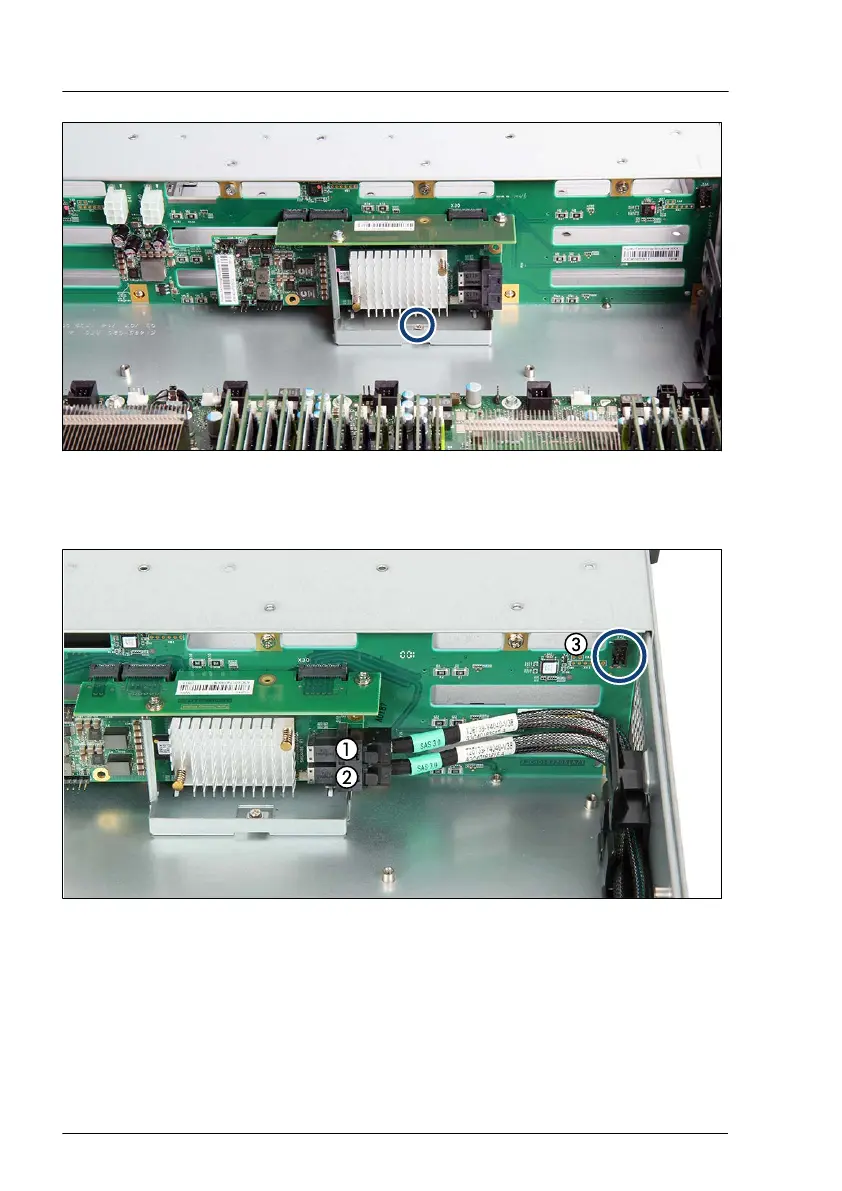

Figure 69: Installing the SAS expander board holder (B)
▶
Fasten the SAS expander board holder with one screw (see circle).
Figure 70: Connecting the SAS expander board to the RAID controller
▶
Connect the SAS cables to the SAS expander board:
1 From SAS controller connector "MLC1" to connector "X1"
2 From SAS controller connector "MLC2" to connector "X2"
Hard disk drive (HDD) / solid state disk (SSD)
156 Upgrade and Maintenance Manual RX2520 M5
