Installing the SAS expander board holder

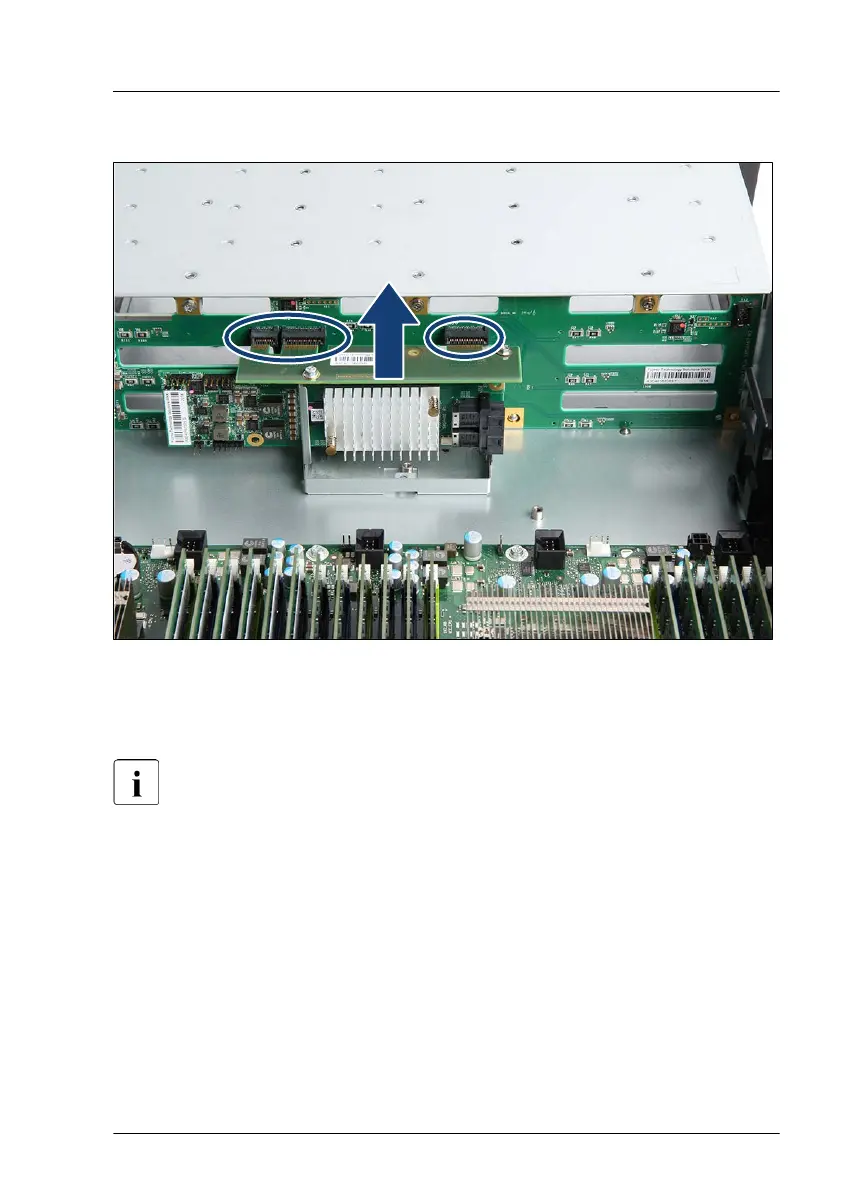

Figure 68: Installing the assembled SAS expander board holder (A)
▶
Install the connector card in the three connectors of the backplane (see
circles).
Lift up the SAS expander board holder and take care of the stand-off in
the chassis.
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 155
