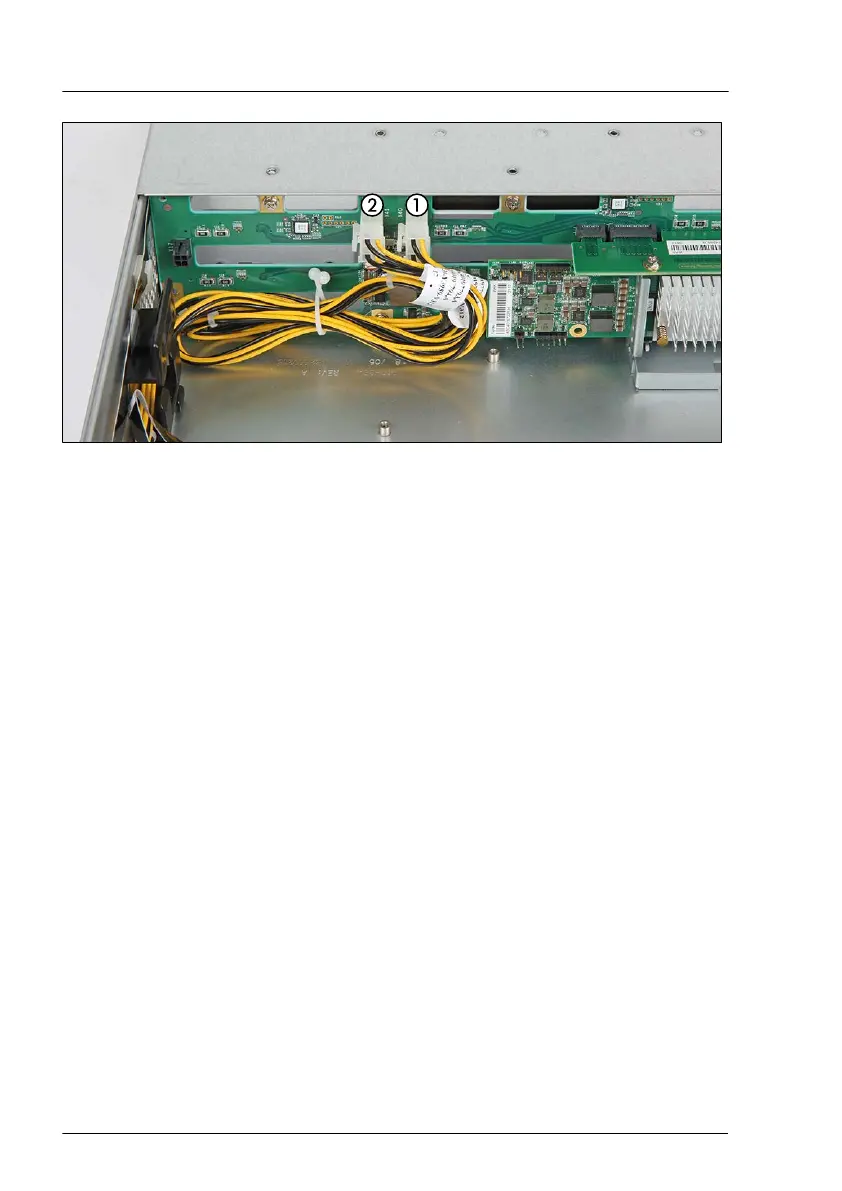

Figure 67: Connecting power cables to the 12x 3.5-inch HDD backplane
▶
Connect the power cables to the HDD backplane:
1 From connector "PWR 1" on system board to connector "X40"
2 From connector "PWR 2" on system board to connector "X41"
Hard disk drive (HDD) / solid state disk (SSD)
154 Upgrade and Maintenance Manual RX2520 M5
