Remove the seven screws (see circles).
▶
T
ake out the backplane at a slight angle (45°).
Installing the new 12x 3.5-inch HDD backplane

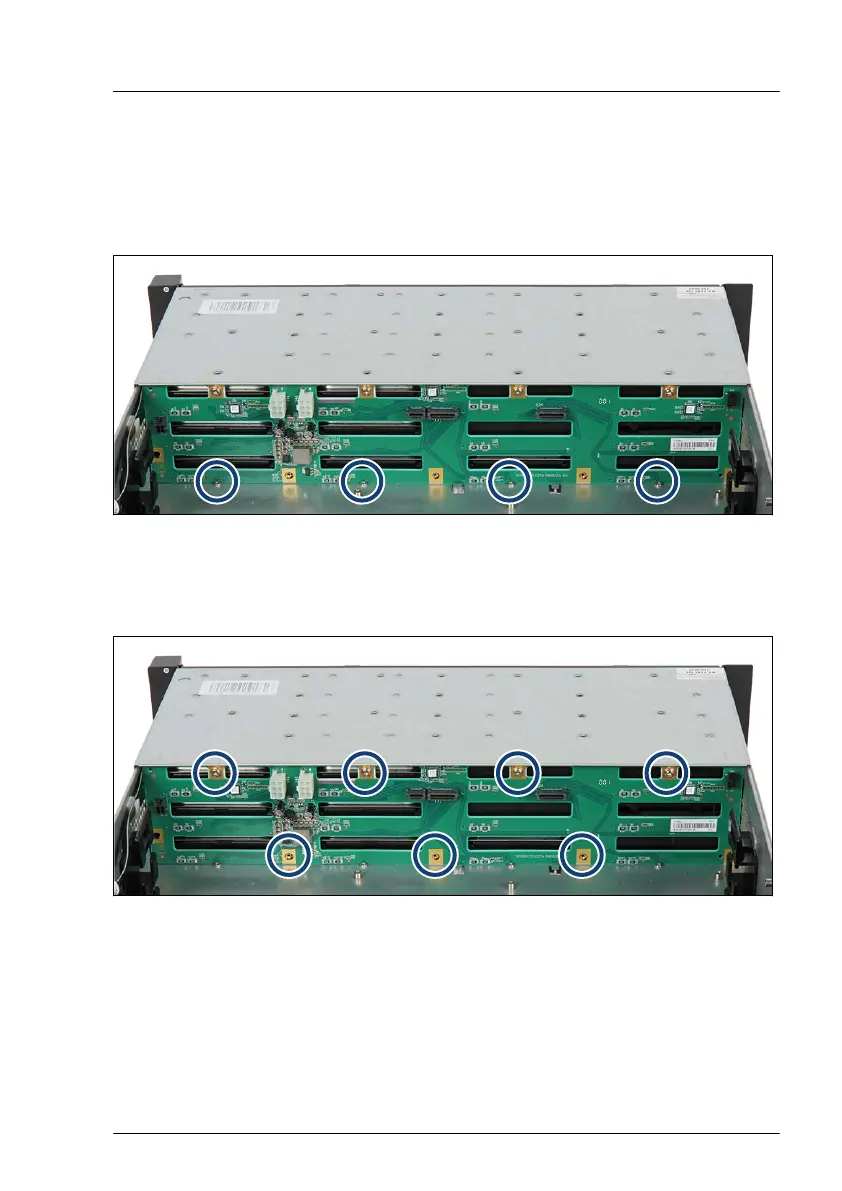

Figure 65: Installing the 12x 3.5-inch HDD backplane (A)
▶
Position the backplane behind the four stampings into the chassis (see
circles).
Figure 66: Installing the 12x 3.5-inch HDD backplane (B)
▶
Fasten the backplane with seven screws (see circles).
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 153
