Disconnect the connector card from the three connectors of the backplane
(see circles) and remove it.
Lift up the SAS expander board holder and take care of the stand-off in
the chassis.
Removing the defective 12x 3.5-inch HDD backplane

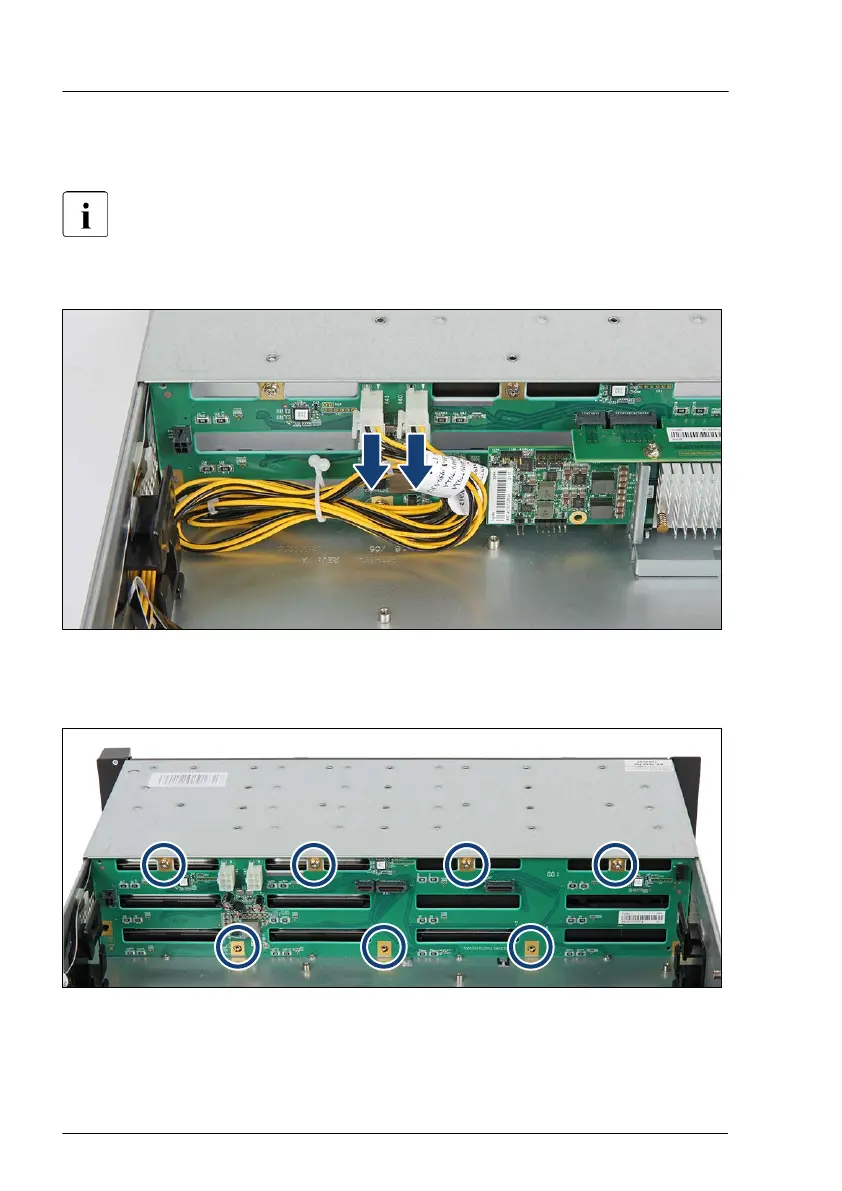

Figure 63: Disconnecting the power cables from the 12x 3.5-inch HDD backplane
▶
Disconnect the two power cables from the backplane.
Figure 64: Removing the 12x 3.5-inch HDD backplane
Hard disk drive (HDD) / solid state disk (SSD)
