Fujitsu PRIMERGY RX2520 M5

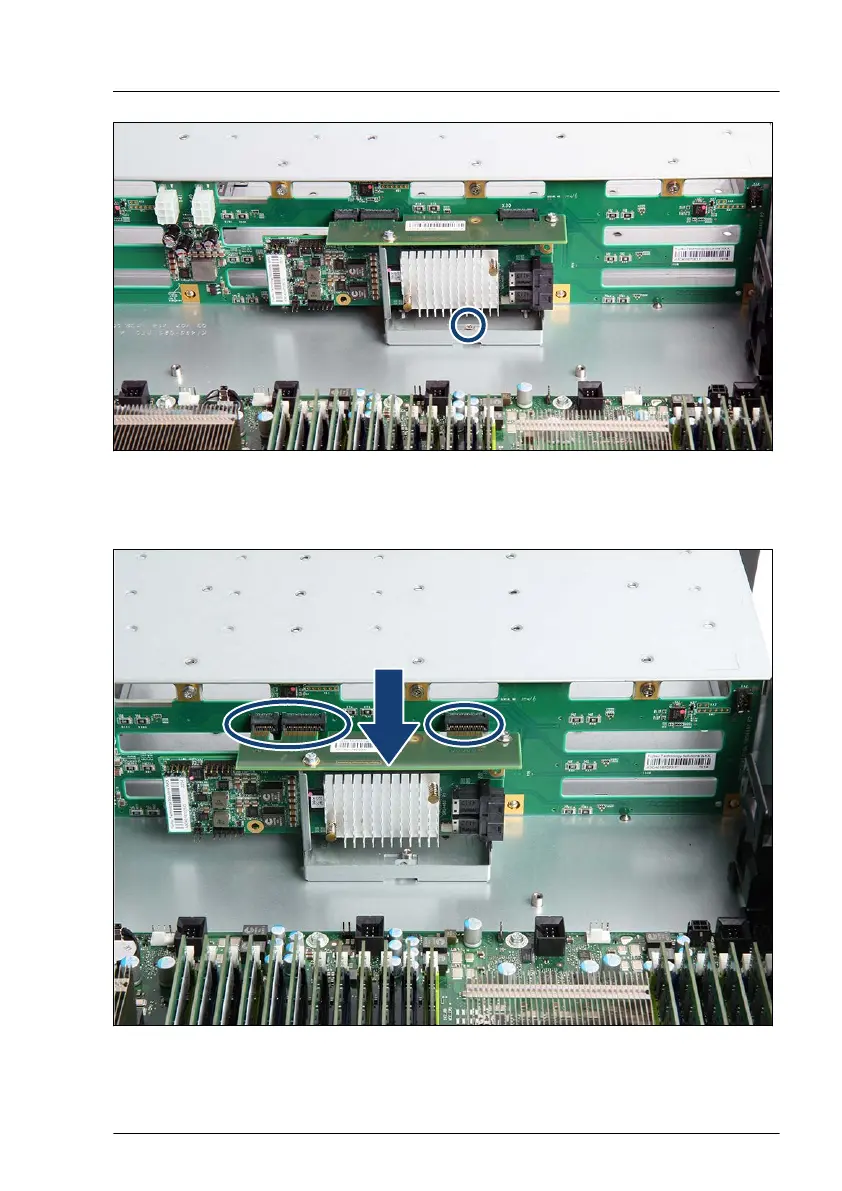

Figure 61: Removing the SAS expander board holder (A)
▶
Remove the screw from the SAS expander board holder (see circle).
Figure 62: Removing the SAS expander board holder (B)
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 151
