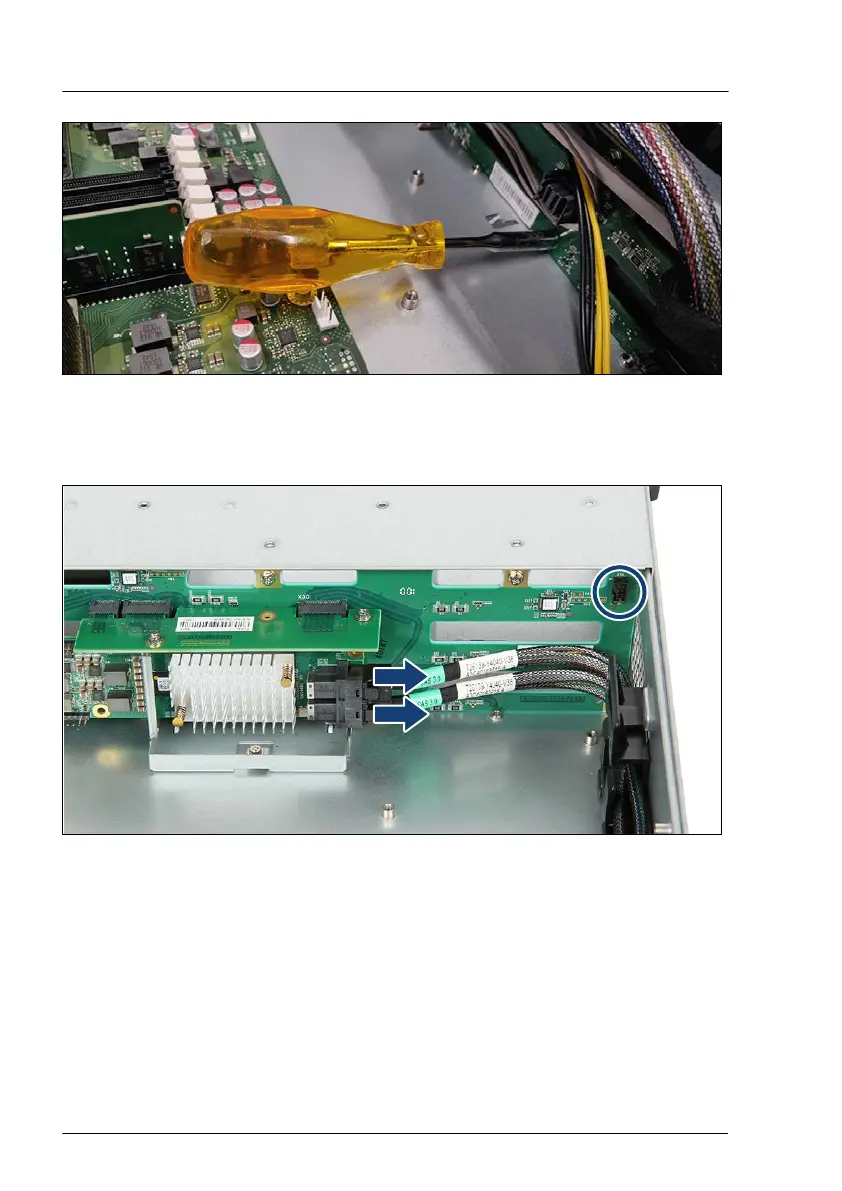

Figure 59: Short screw driver
Removing the SAS expander board holder
Figure 60: Disconnecting the cables from the SAS expander board
▶
Disconnect the two SAS cables from the SAS expander board.
▶
If applicable, disconnect the OOB cable from the backplane (see circle).
Hard disk drive (HDD) / solid state disk (SSD)
