Fujitsu PRIMERGY RX2520 M5

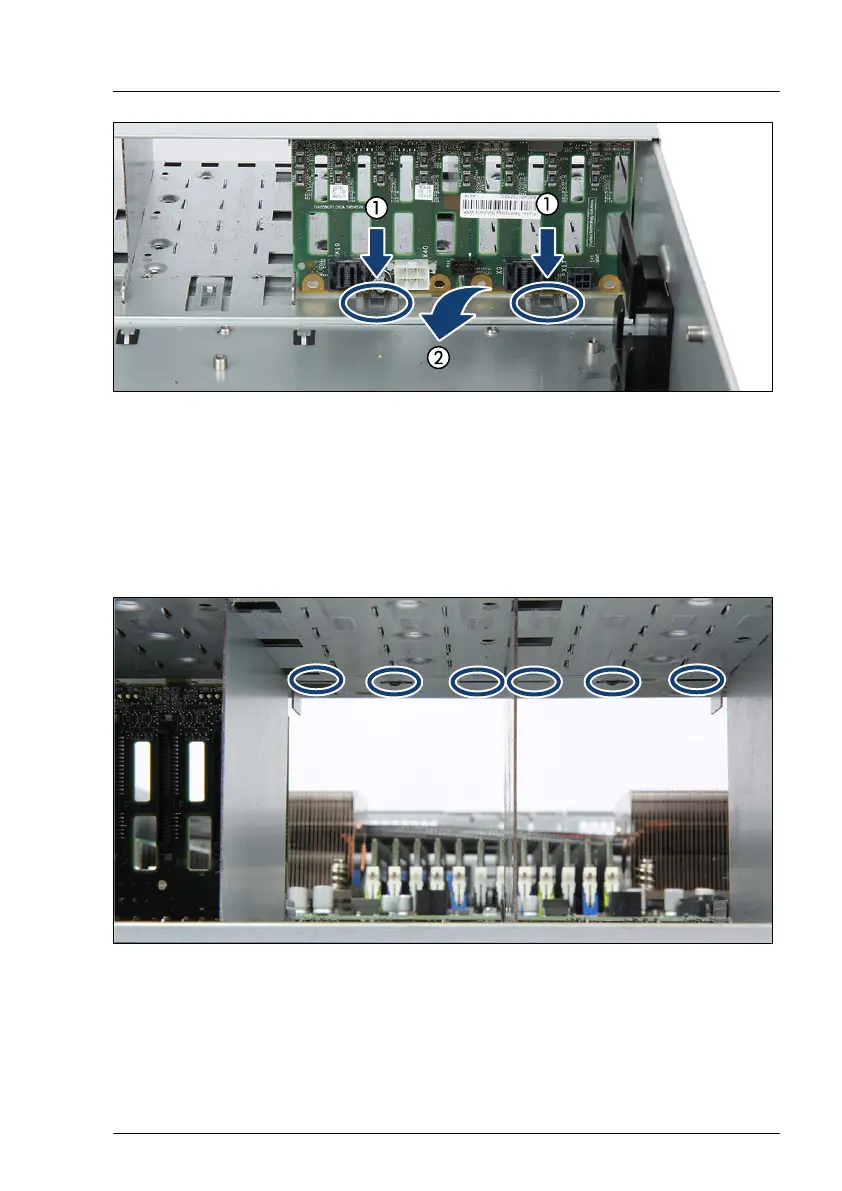

Figure 96: Removing the 8x 2.5-inch HDD backplane
▶
Press down the two hooks (1) with a flat screw driver and tilt out the
backplane (2).
▶
Take out the backplane (2).
Installing a 2.5-inch HDD backplane
Figure 97: Recesses at the top for the 2.5-inch HDD backplane
▶
Regard the six recesses at the top.
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 187
