"Disconnecting the power cord" on page 46
.
▶
"Getting access to the component" on page 47.
▶
Release all HDD/SSD modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD module" on page 176.
The HDD/SSD modules need not to be removed. But if you want to
remove them nevertheless, check if all HDD/SSD modules are
uniquely identified so that you can reinsert them into their original
bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD dummy module" on page 173.
▶
"Removing the air duct" on page
58.
▶
"Removing the fan holder" on page 60.
▶
If applicable, remove the SAS expander board holder, see "Removing the
SAS expander board holder" on page 198
Removing the 2.5-inch HDD backplane

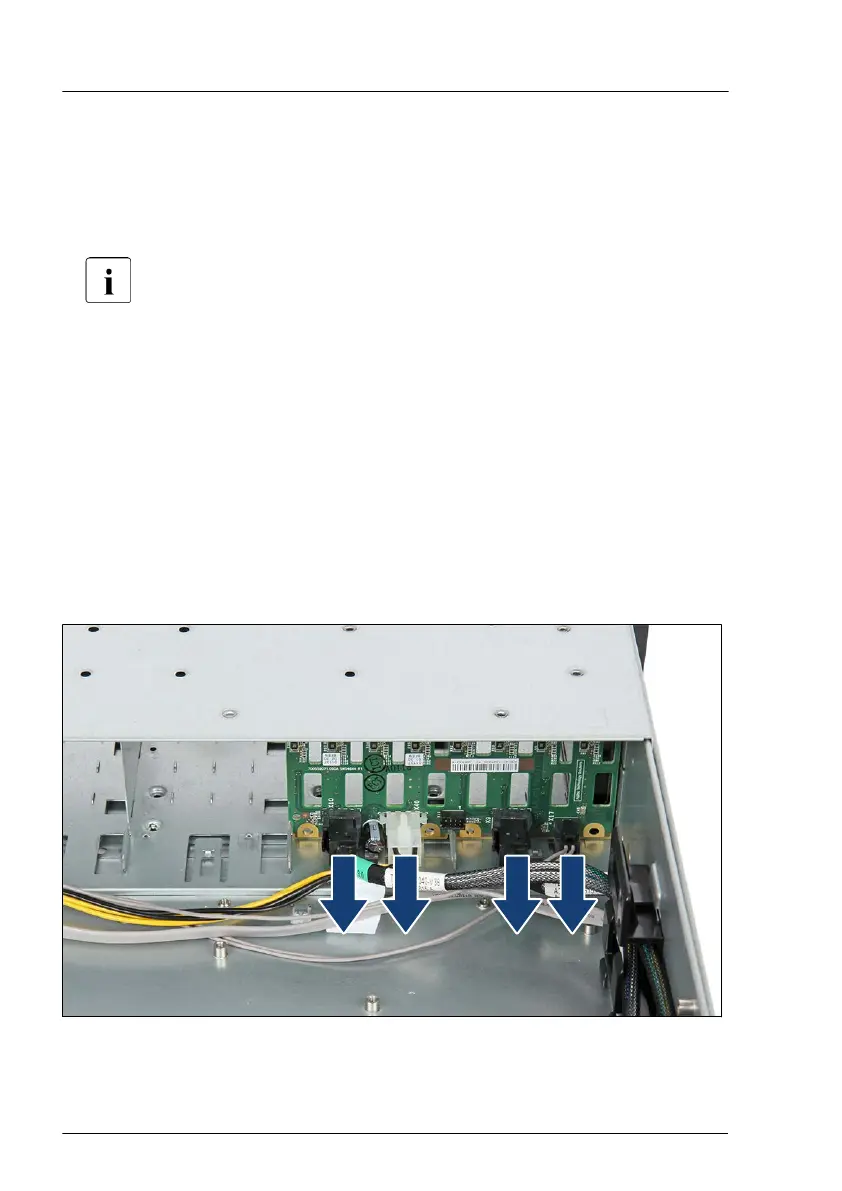

Figure 95: Disconnecting the cables from the backplane (example 8x 2.5-inch HDDs)
▶
Disconnect all cables from the backplane.
Hard disk drive (HDD) / solid state disk (SSD)
186 Upgrade and Maintenance Manual RX2520 M5
