"Getting access to the component" on page 47
.
▶
"Removing the air duct" on page 58.
▶
"Removing the fan holder" on page 60.
Removing the 4x 2.5-inch PCIe SSD backplane

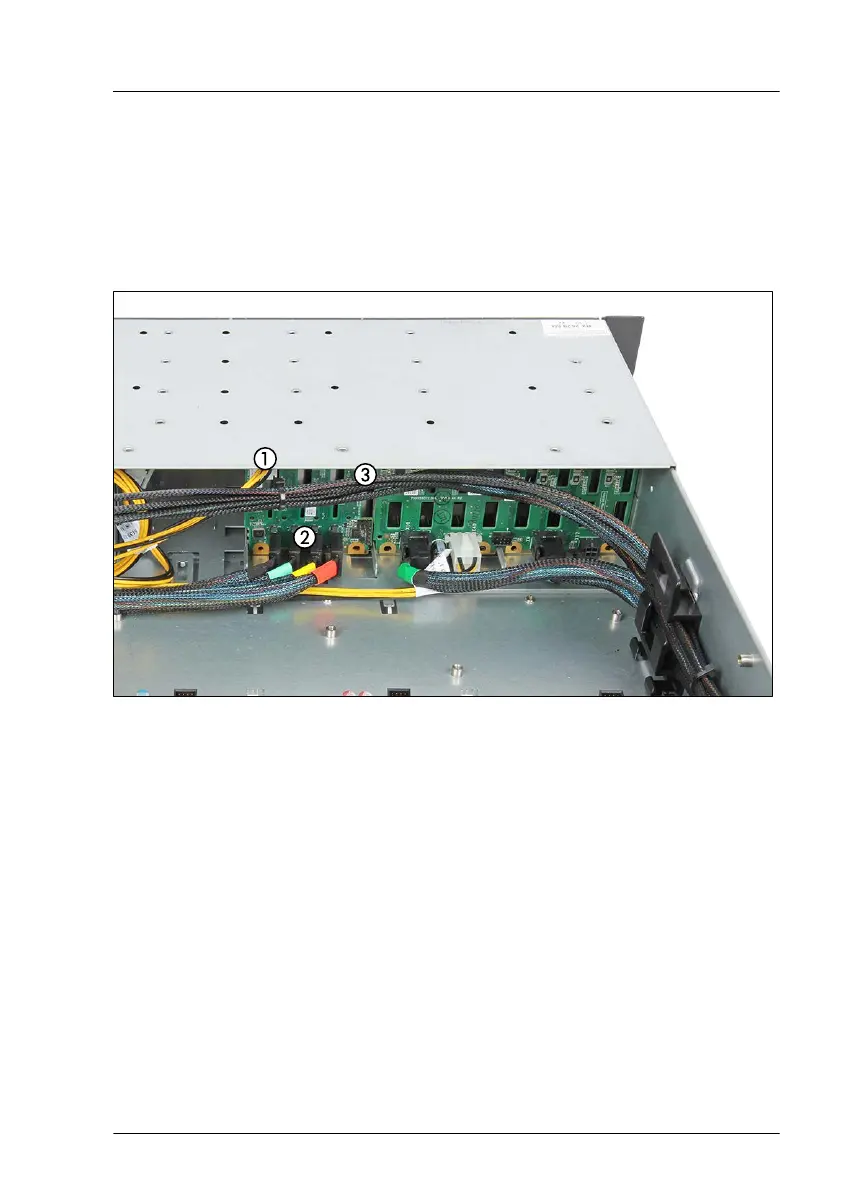

Figure 109: Disconnecting cables from the 2.5-inch PCIe SSD backplane
▶
Disconnect all cables from the PCIe SSD backplane (1, 2, 3).
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 205
