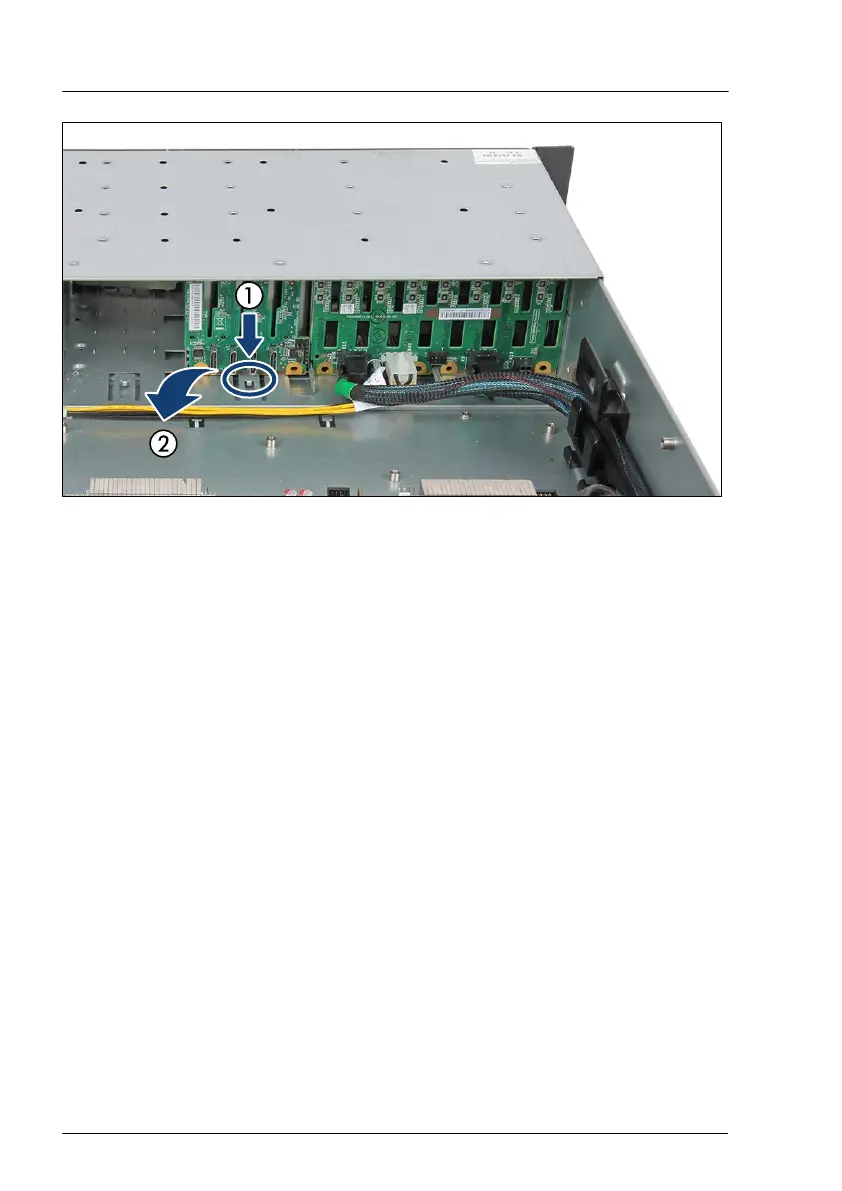

Figure 110: Removing the 2.5-inch PCIe SSD backplane
▶
Press down the hook (1) with a flat screw driver and tilt out the backplane
(2).
▶
Take out the backplane (2).
Concluding steps
▶
"Installing the fan holder" on page
61.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
Update the server configuration, see "Using the Chassis ID Prom Tool" on
page 94.
▶
"Switching on the server" on page 57.
▶
"Resuming BitLocker functionality" on page 88.
