Fujitsu PRIMERGY RX2520 M5

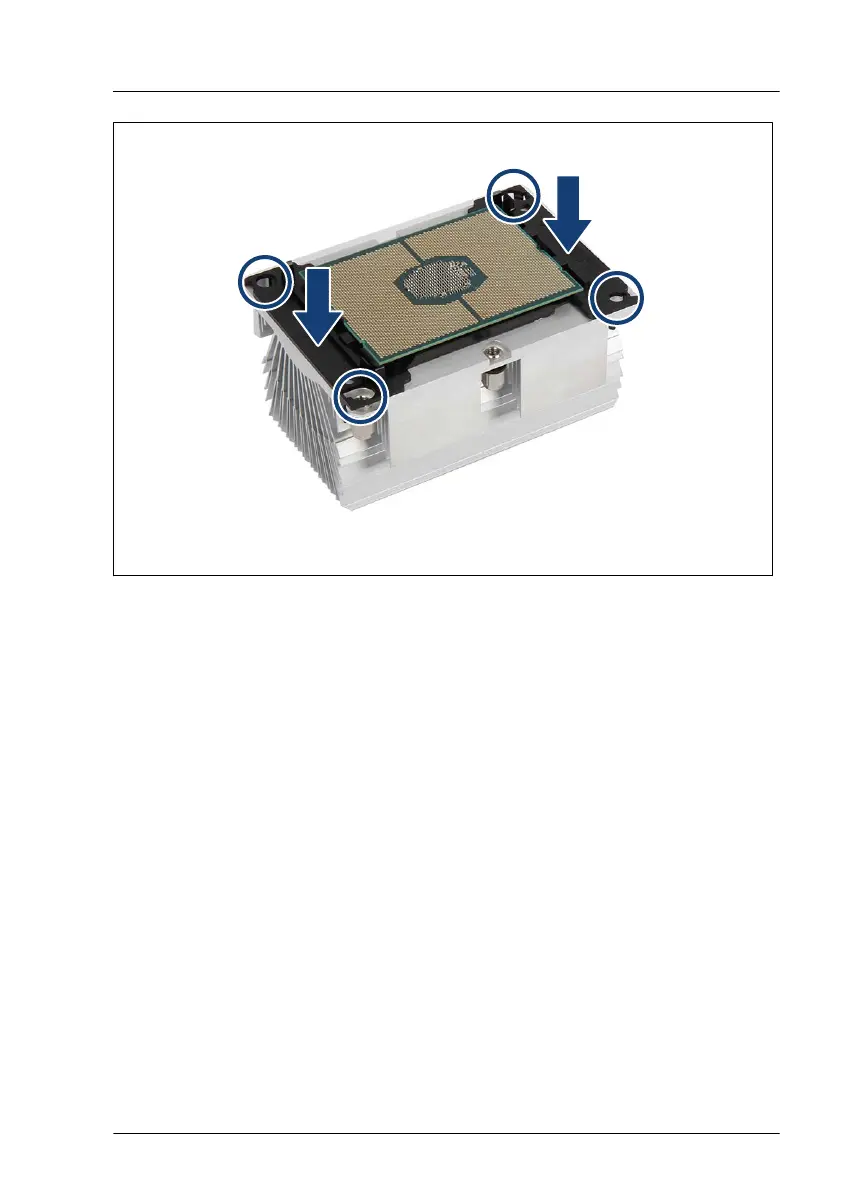

Figure 163: Installing the CPU frame on the heat sink (B)
▶
Press down the CPU frame (see arrows).
The frame must click into place (see circles).
Processor (CPU)
RX2520 M5 Upgrade and Maintenance Manual 279
