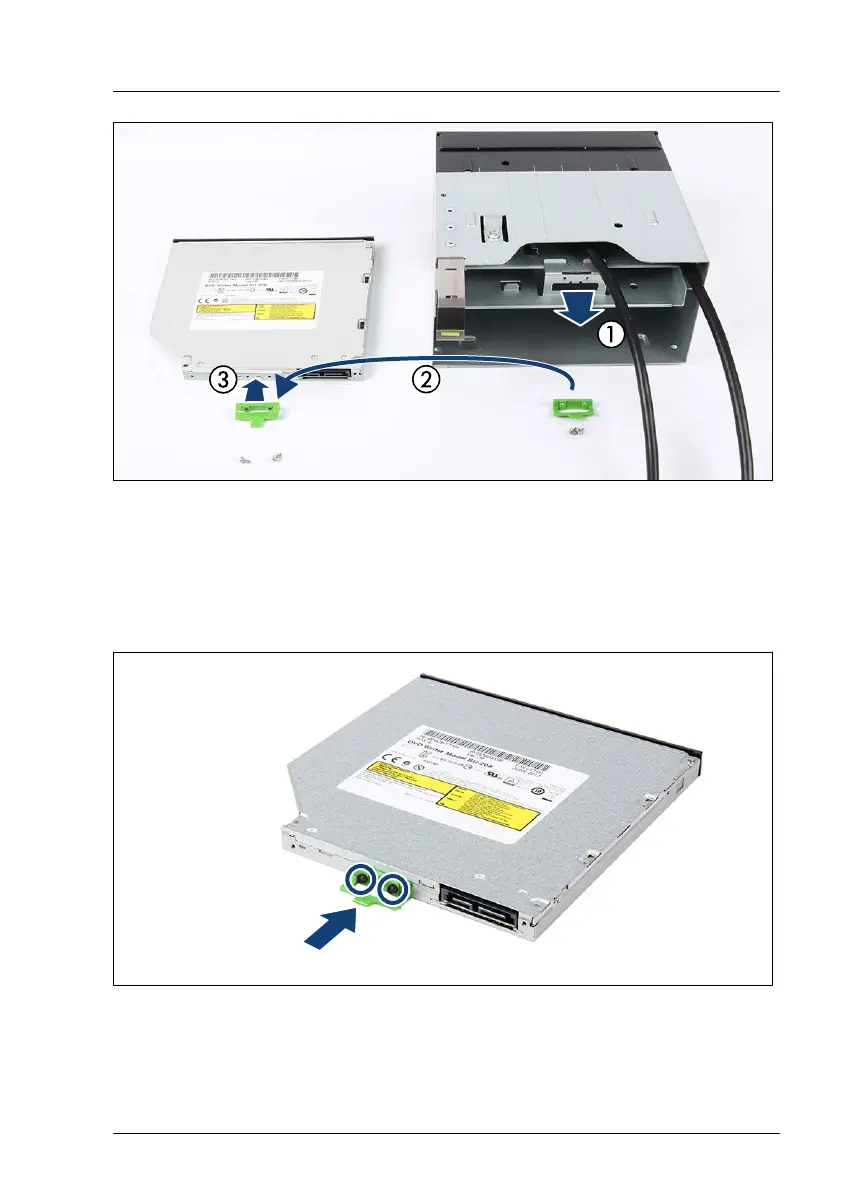

Figure 175: Installing the ODD latch
▶
Remove the ODD latch from the front panel cage (1).
▶
T
urn the ODD latch 180° (2).
▶
Attach the ODD latch to the rear side of the ODD drive (3).
Figure 176: Fastening the ODD latch
▶
Fasten the ODD latch with two screws (see circles).
Accessible drives
