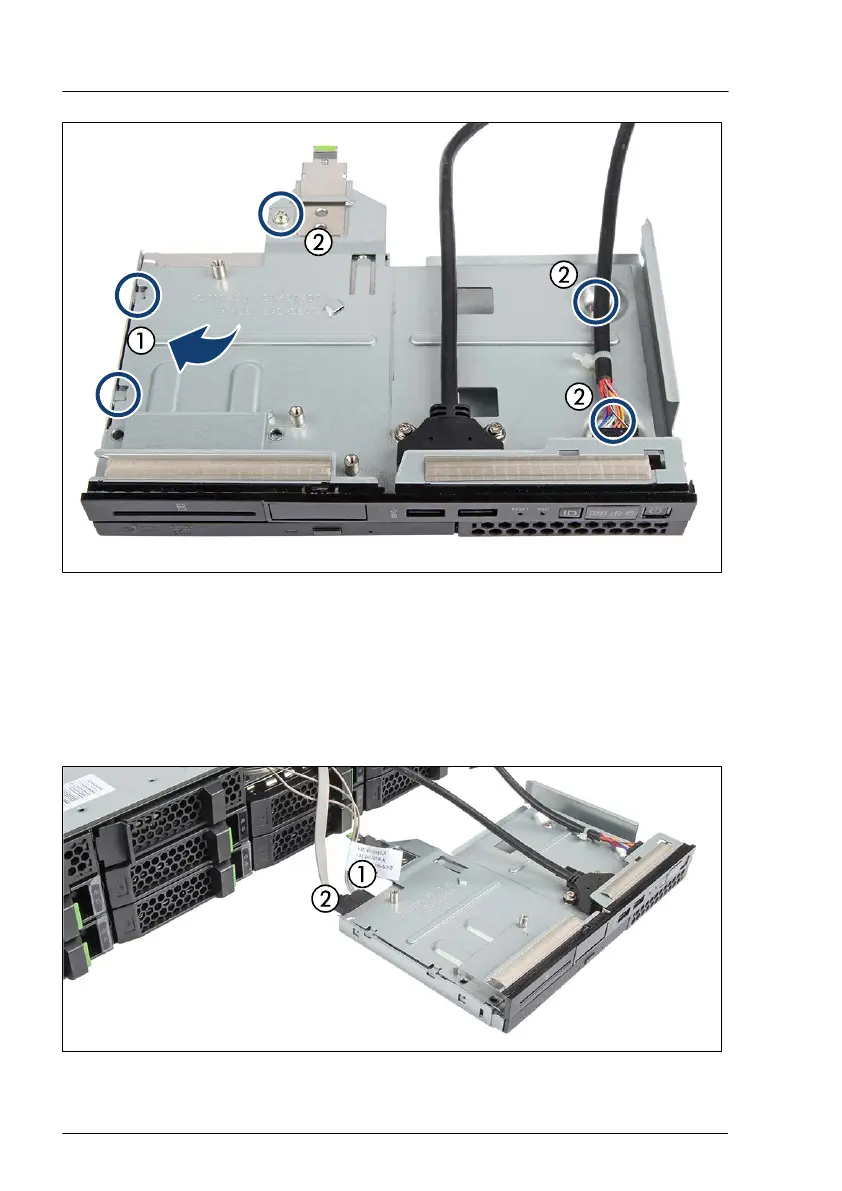

Figure 189: Installing the cover plate
▶
Position the cover plate of the front panel module at a slight angle into the
two recesses and push it down (1).
▶
Fasten the three screws (2).
▶
Connect the front panel cable.
Figure 190: Installing the ODD
Accessible drives
310 Upgrade and Maintenance Manual RX2520 M5
