Connect the cables to the ODD:
1 ODD power cable
2 ODD SATA cable

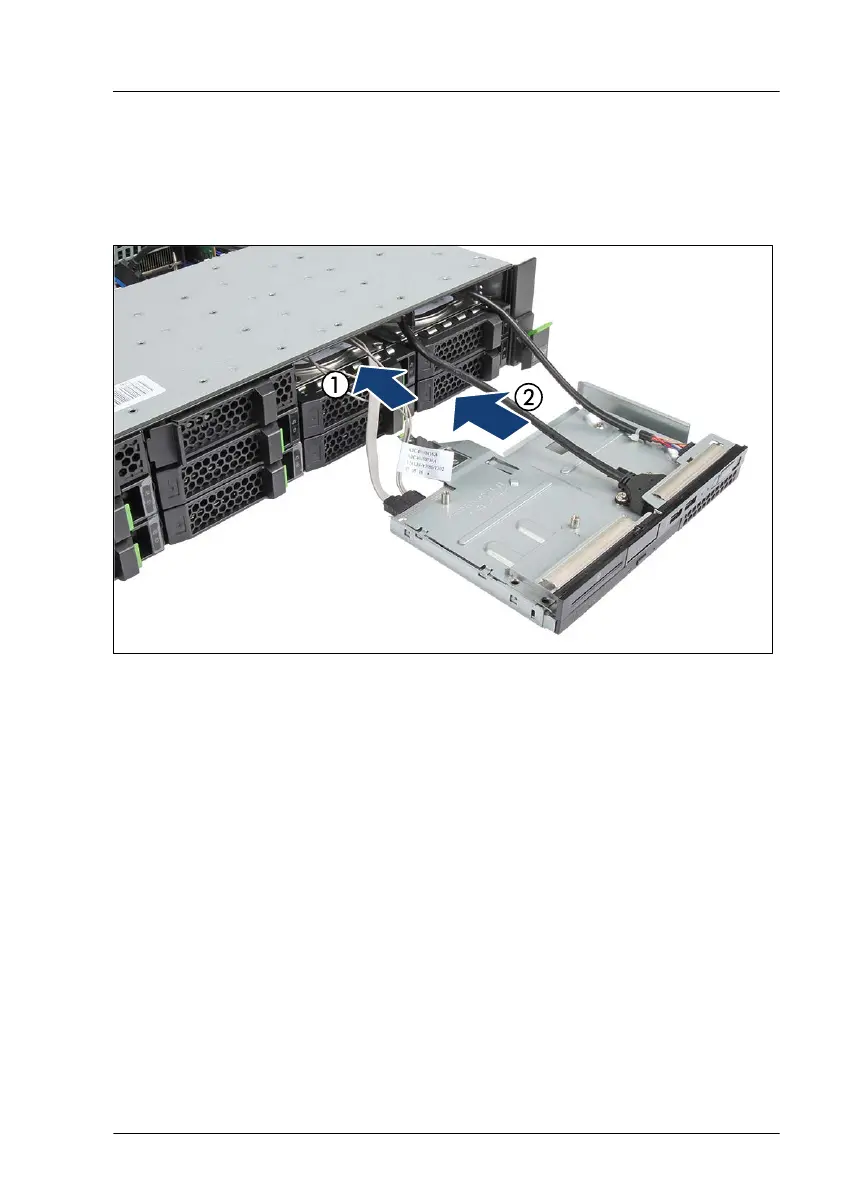

Figure 191: Installing the front panel module (A)
▶
Run the SAT
A and power cables through the ODD bay opening as shown
(1).
▶
Insert the front panel module (2).
Accessible drives
