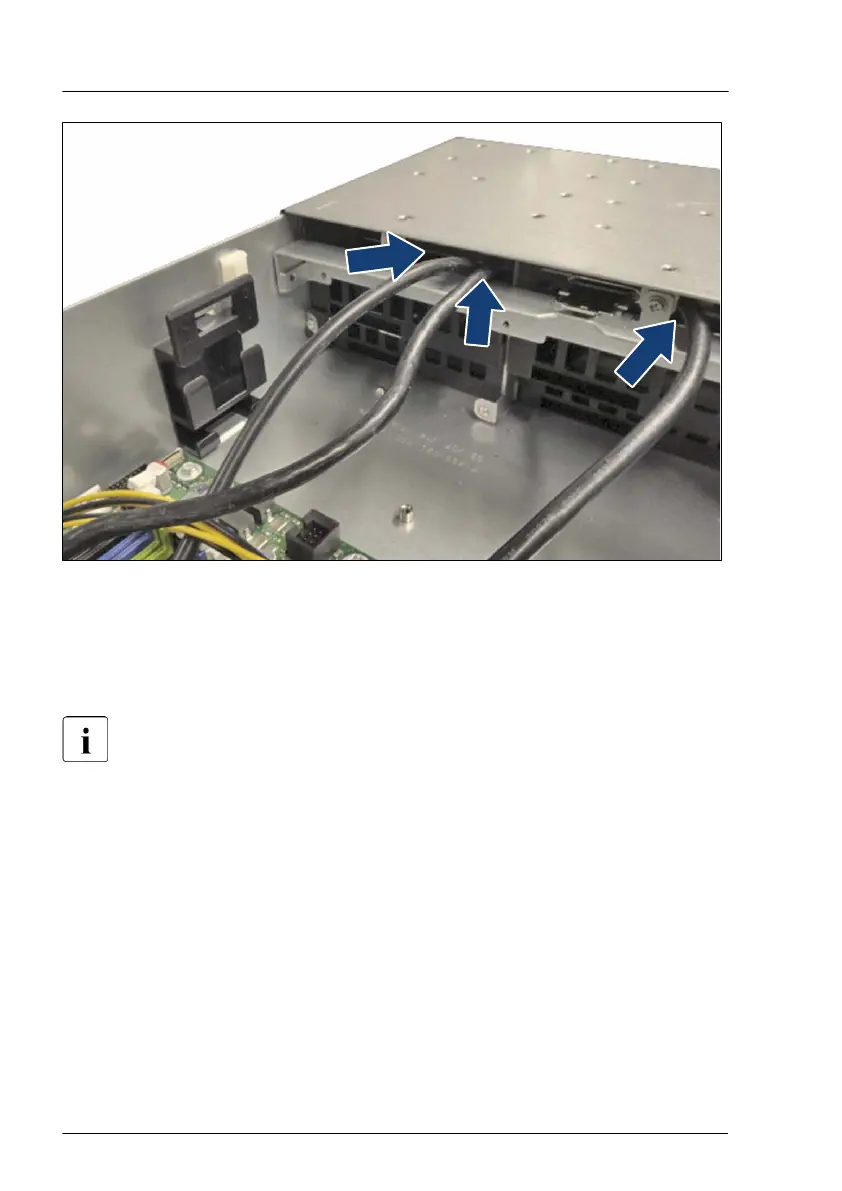

Figure 192: Installing the front panel module (B)
▶
Run the cables through the openings as shown.
▶
Connect the ODD power cable and the ODD SA
T
A cable to the system
board.
For the cable plan, see "Appendix B" on page 463
.
Concluding steps
▶
"Installing the front panel module" on page 354.
▶
"Installing the fan holder" on page
61.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Resuming BitLocker functionality" on page 88.
Accessible drives
312 Upgrade and Maintenance Manual RX2520 M5
