Connect the front panel cable (1) and if applicable, secure it with two cable
ties.
The cable tie (see circle) is only removed when replacing front panel
cable. There is no action needed when replacing the front panel
module.
▶
Push the front USB3.0 connector into the front panel module (1).
Ensure that the contact areas point up, see Figure 224.
▶
Fasten the front USB3.0 connector with two screws (see circles).
CAUTION
▶
Do not fasten the screw too firmly.
▶
Torque: 0.4 Nm.
Installing the front panel module

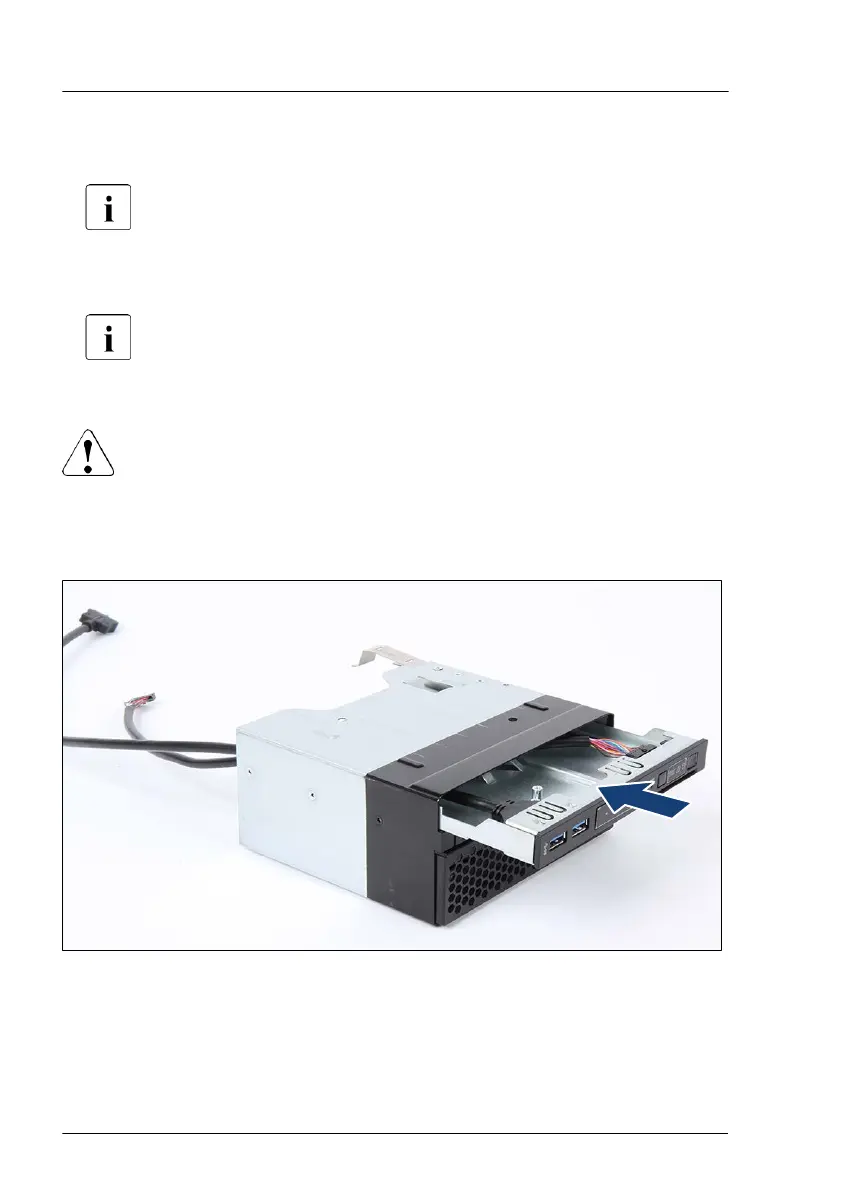

Figure 226: Installing the front panel module
▶
Run the cables through the front panel bay.
▶
Insert the front panel module into the front panel cage.
Front panel
