Fasten the fully inserted front panel module with one screw.
Installing the front panel cage

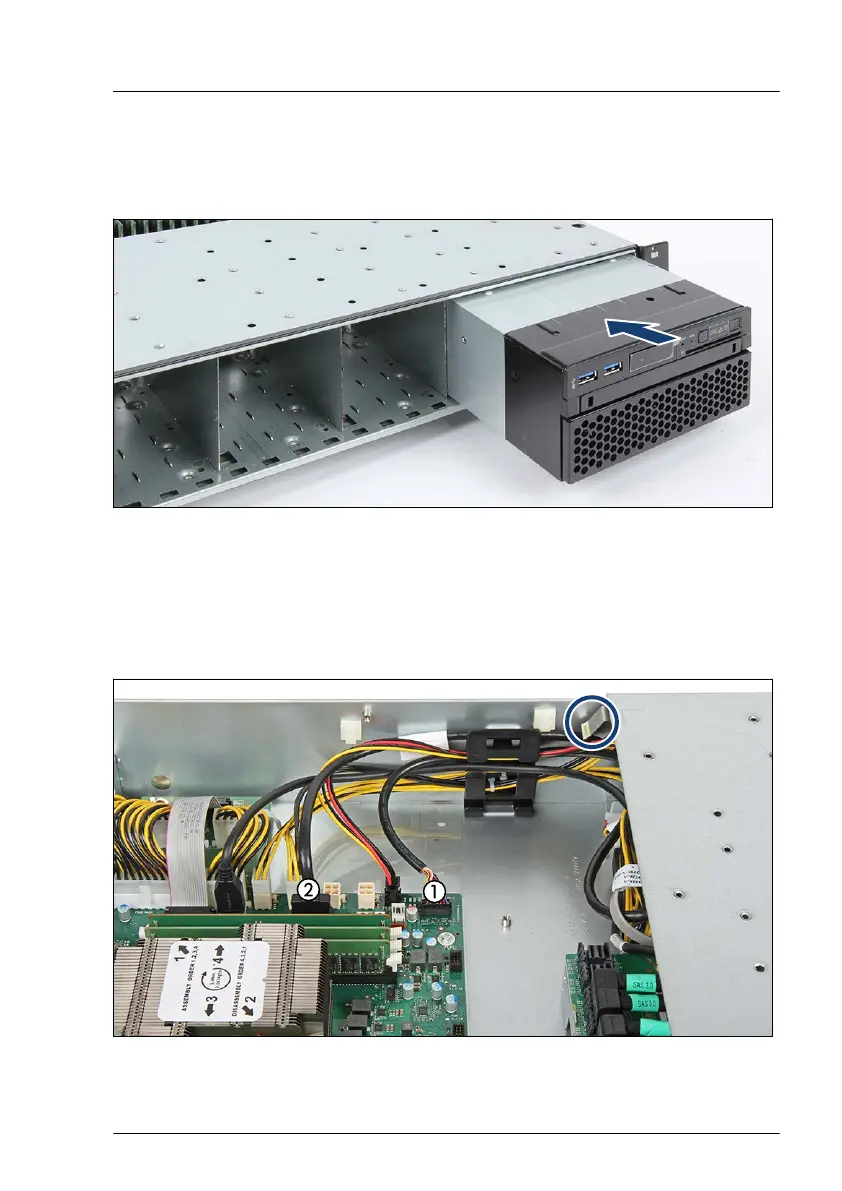

Figure 227: Installing the front panel cage
▶
Run the cables through the opening.
▶
Insert the front panel cage into the chassis.
▶
Insert the ID card, see Figure 281.
Figure 228: Connecting the front panel cables
Front panel
RX2520 M5 Upgrade and Maintenance Manual 355
