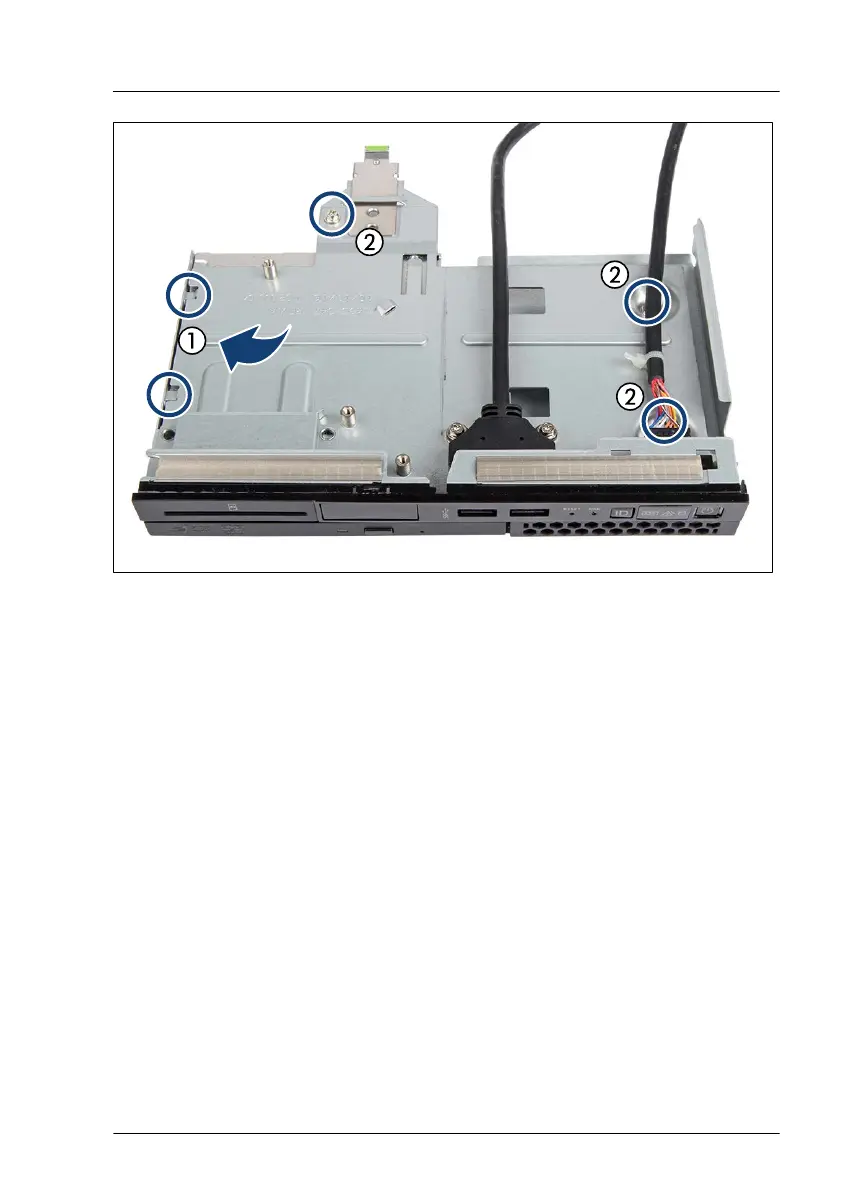

Figure 197: Installing the cover plate
▶
Position the cover plate of the front panel module at a slight angle into the
two recesses and push it down (1).
▶
Fasten the three screws (2).
▶
Connect the front panel cable.
Concluding steps
▶
"Installing the front panel module" on page
354
.
▶
"Installing the fan holder" on page 61.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Resuming BitLocker functionality" on page 88.
