Fujitsu PRIMERGY RX2520 M5

Preparing an RDX drive

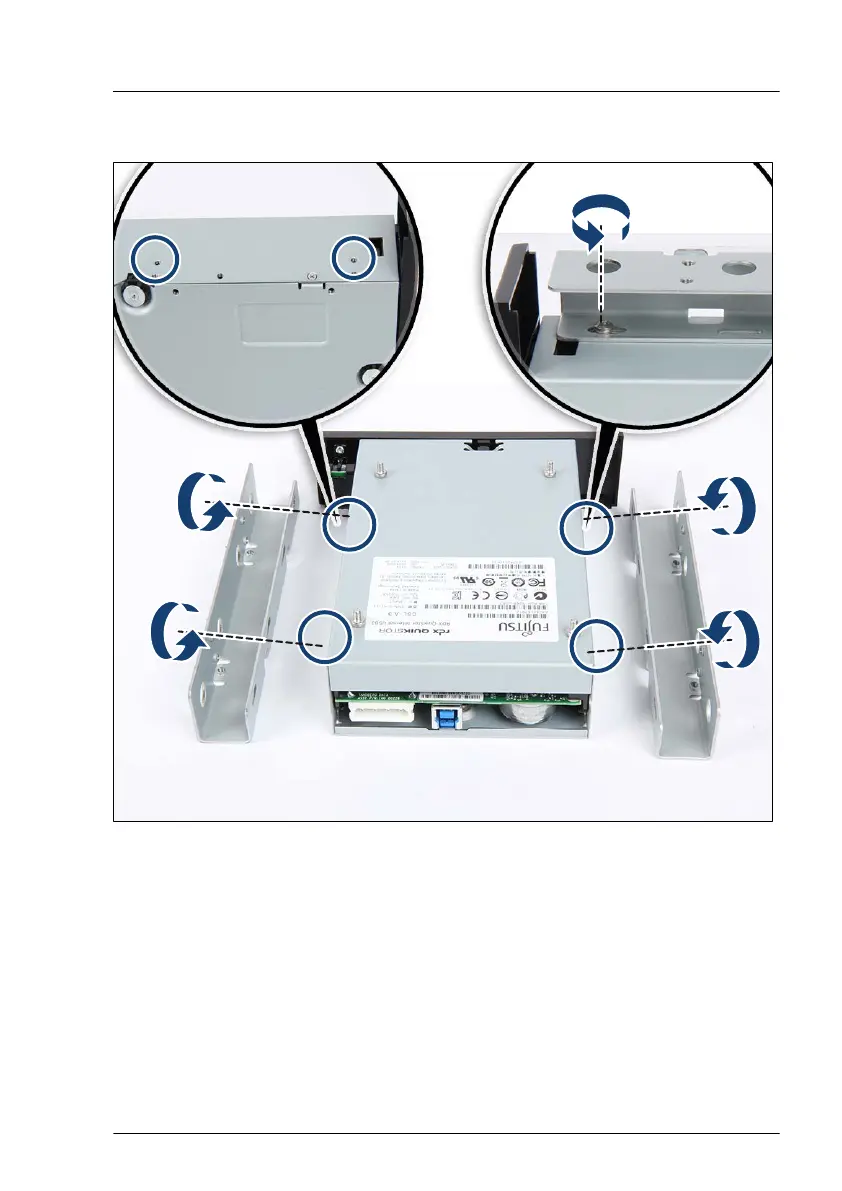

Figure 211: Installing the rails to the RDX drive (A)
▶
Fasten the rails with each two screws (fillister head screw, M3x 5
mm; PZ2,
0.6 Nm; four screws are parts of RDX adapter set) The screws must be
fasten in the middle of the slotted holes.
Accessible drives
RX2520 M5 Upgrade and Maintenance Manual 335
