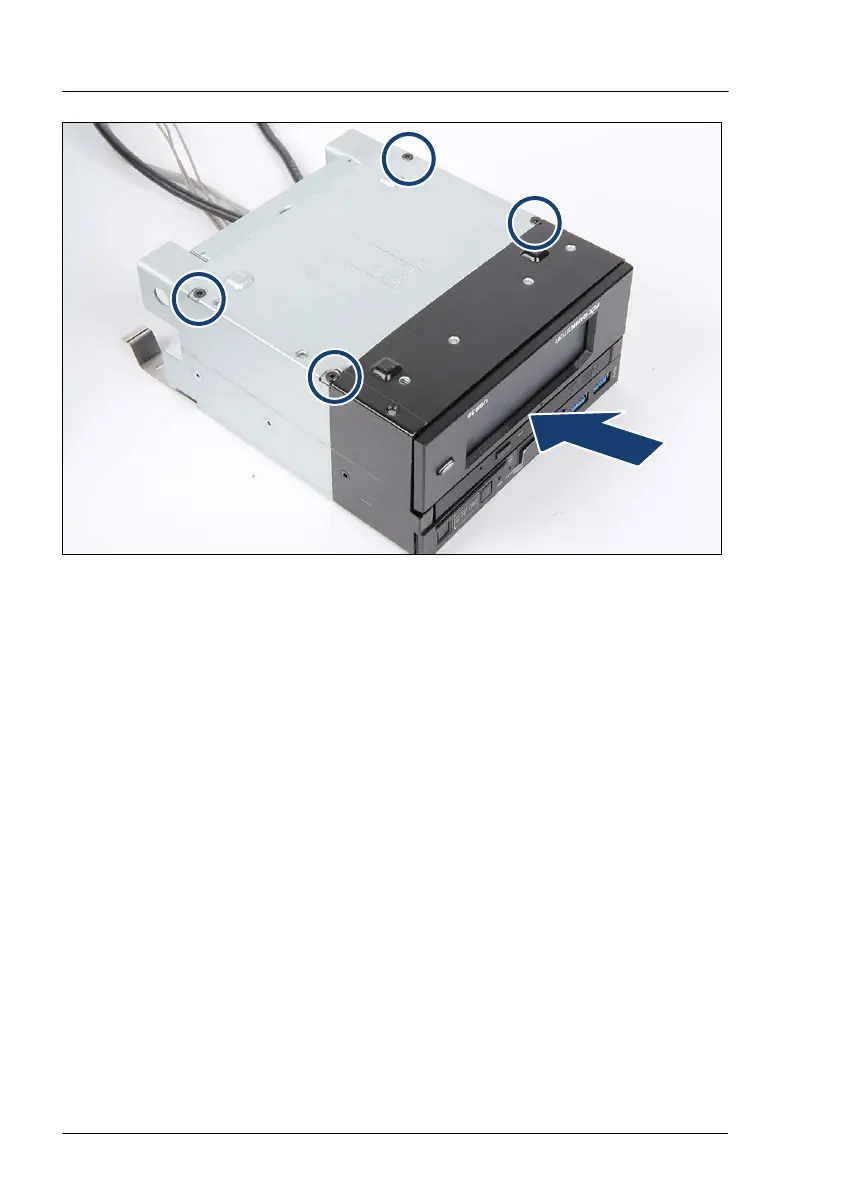

Figure 212: Installing the RDX drive (B)
▶
Insert the RDX drive with the bottom upward.
▶
Fasten the four screws (use the screws that are used for fixing the air grid).
Connecting the RDX-drive
▶
Install the front panel cage, see "Installing the front panel cage" on
page
355
.
