"Removing the air duct" on page 58
.
▶
"Removing the fan holder" on page 60.
Removing the RDX drive

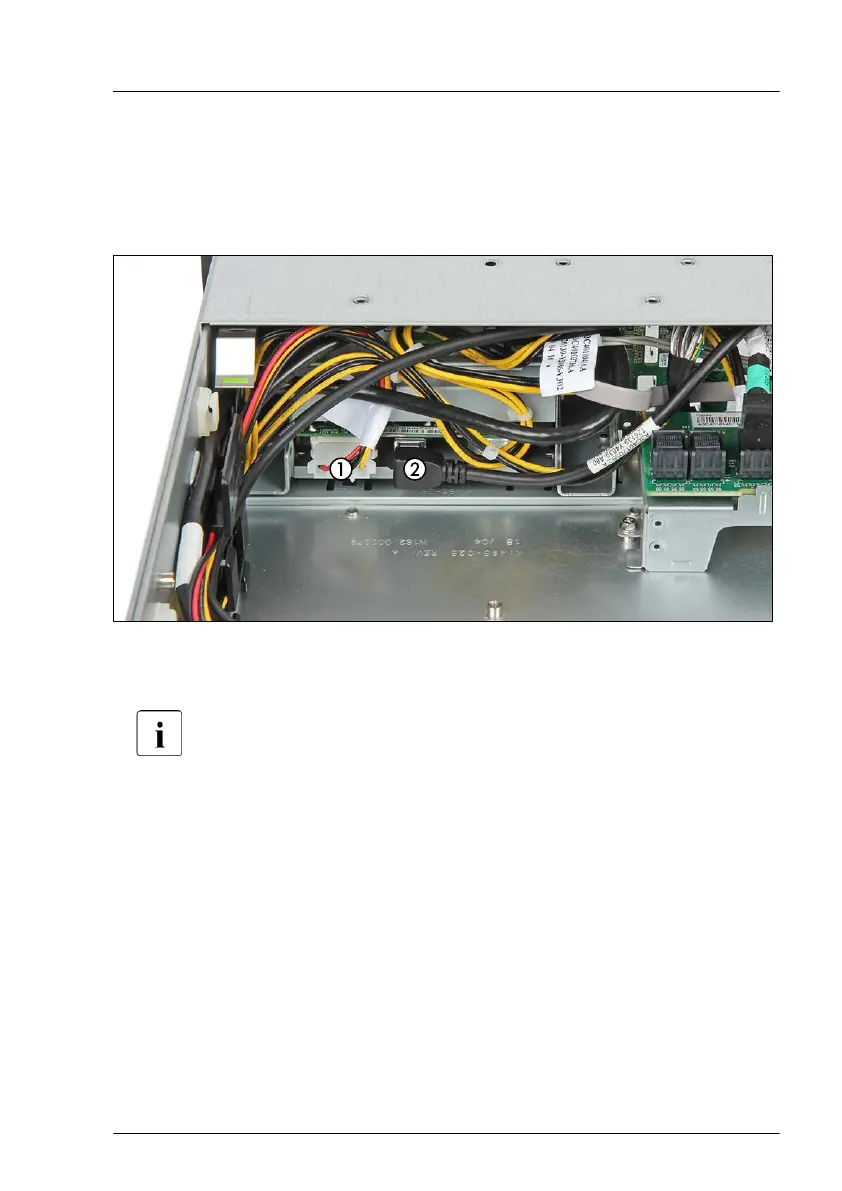

Figure 215: Disconnecting the cables from the RDX drive
▶
Disconnect both cables (1, 2).
If you do not want to replace the RDX drive but remove it, you can
remove the RDX power cable and the RDX SAT
A cable from the
system board.
▶
Remove the front panel cage, see "Removing the front panel cage" on
page 347.
Accessible drives
RX2520 M5 Upgrade and Maintenance Manual 339
