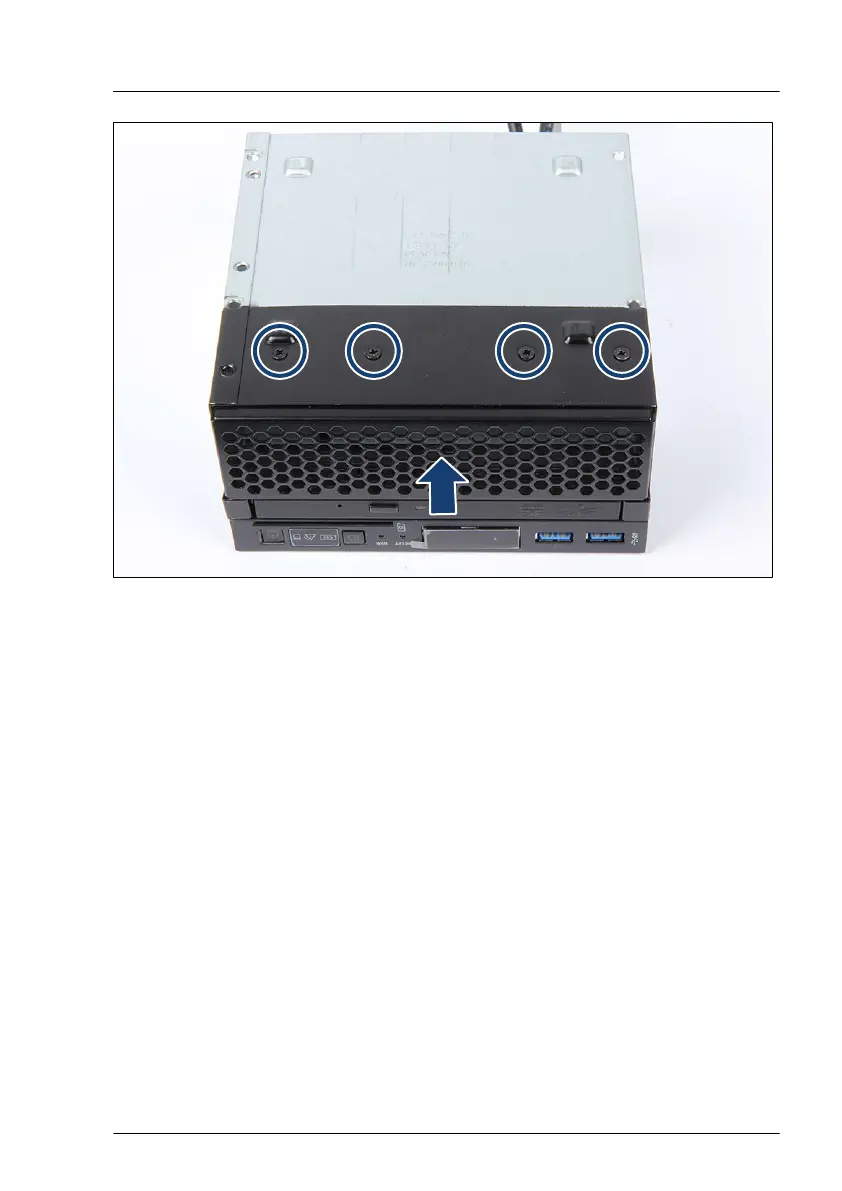

Figure 217: Installing air grid to the front panel cage
▶
Insert the air grid.
▶
Fasten the air grid with four screws.
Concluding steps
▶
"Installing the front panel cage" on page
355
.
▶
"Installing the fan holder" on page 61.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Resuming BitLocker functionality" on page 88.
Accessible drives
RX2520 M5 Upgrade and Maintenance Manual 341
