Fujitsu PRIMERGY RX2520 M5

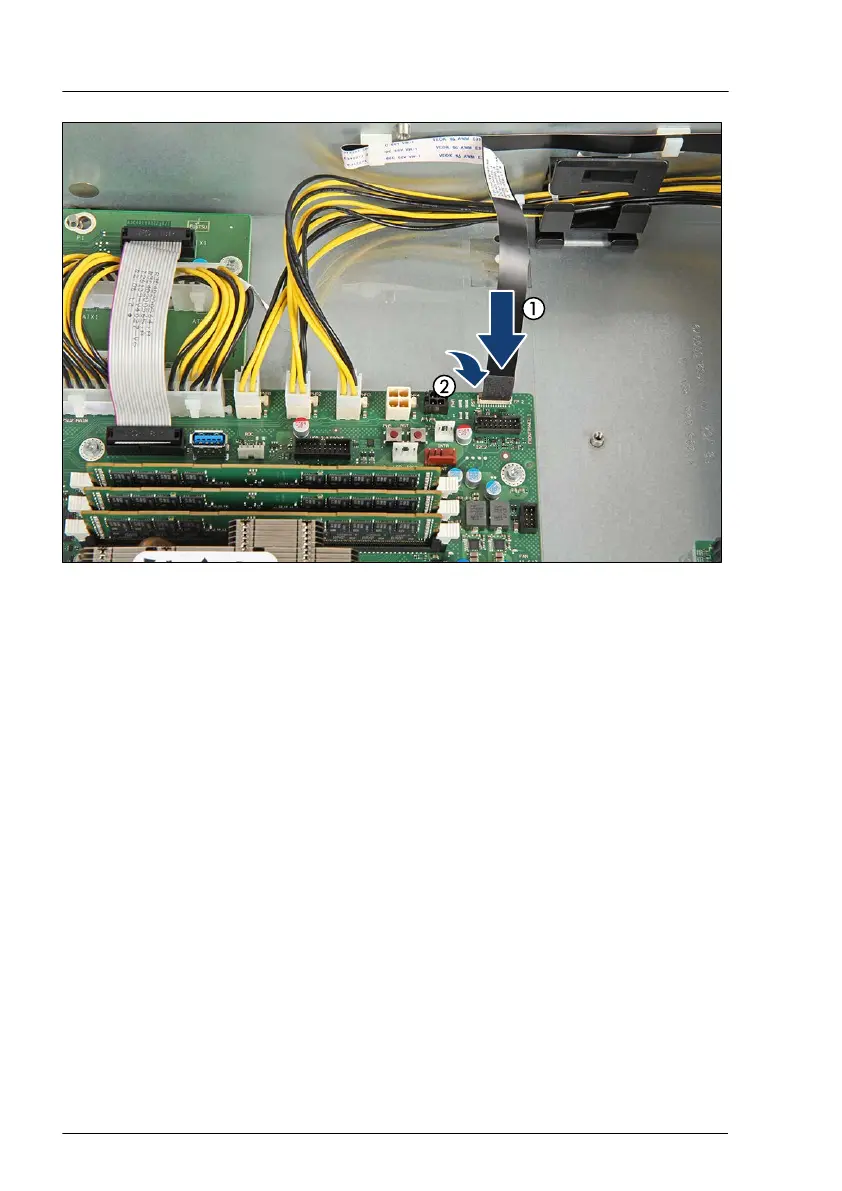

Figure 242: Connecting the front panel cable
▶
Insert the front panel cable (1). Please ensure that the front panel cable is
assembled as shown (blue marking).
▶
Press down the locking bar (2).
Front panel
372 Upgrade and Maintenance Manual RX2520 M5
