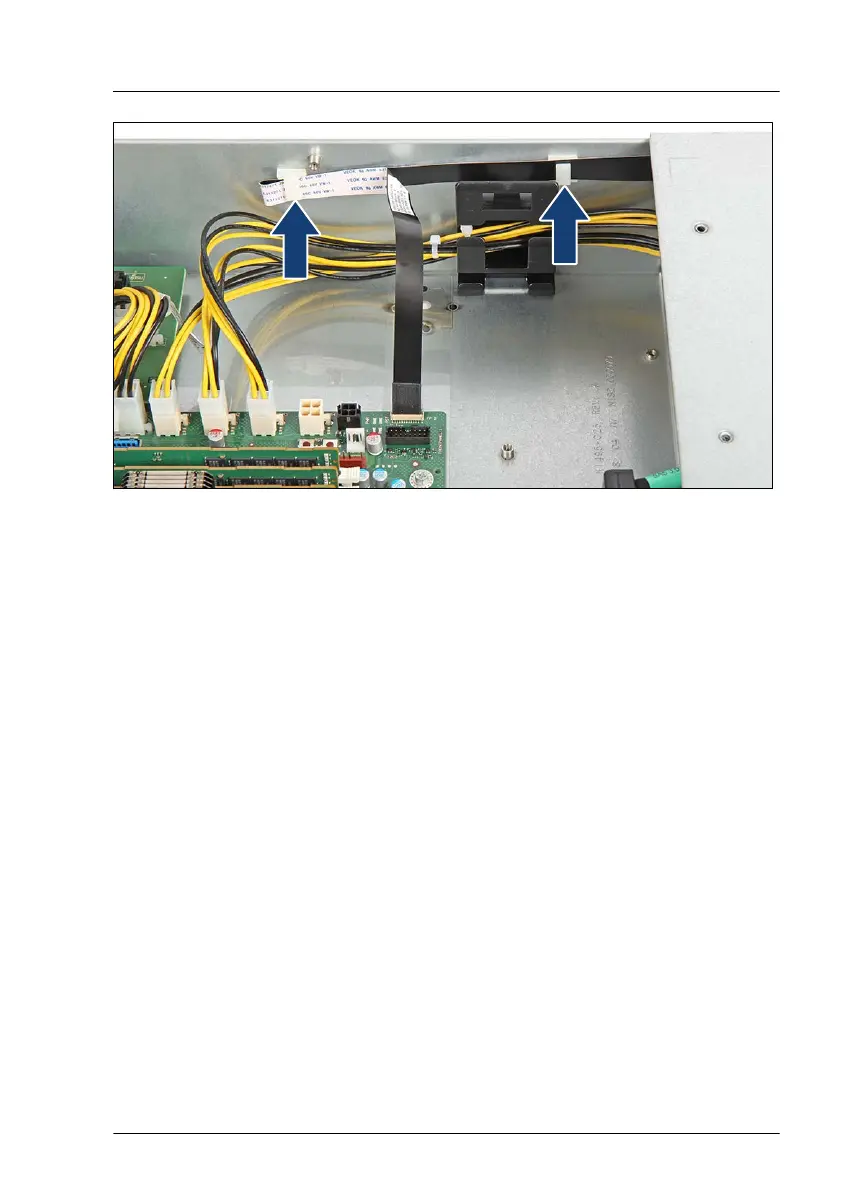

Figure 243: Routing the front panel cable on QRL
▶
Run the front panel cable through the cable clamp as shown.
Concluding steps
▶
"Installing the fan holder" on page
61
.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Verifying system information backup or restore" on page 72.
▶
Store the system information of your server on the Chassis ID EPROM
integrated into the front panel board. For more information on how to obtain
and use the Chassis ID Prom Tool, see "Using the Chassis ID Prom Tool"
on page 94.
▶
"Resuming BitLocker functionality" on page 88.
Front panel
RX2520 M5 Upgrade and Maintenance Manual 373
