Preliminary steps
▶
"Shutting down the server" on page 45
.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
Removing the Dual microSD 64GB Enterprise

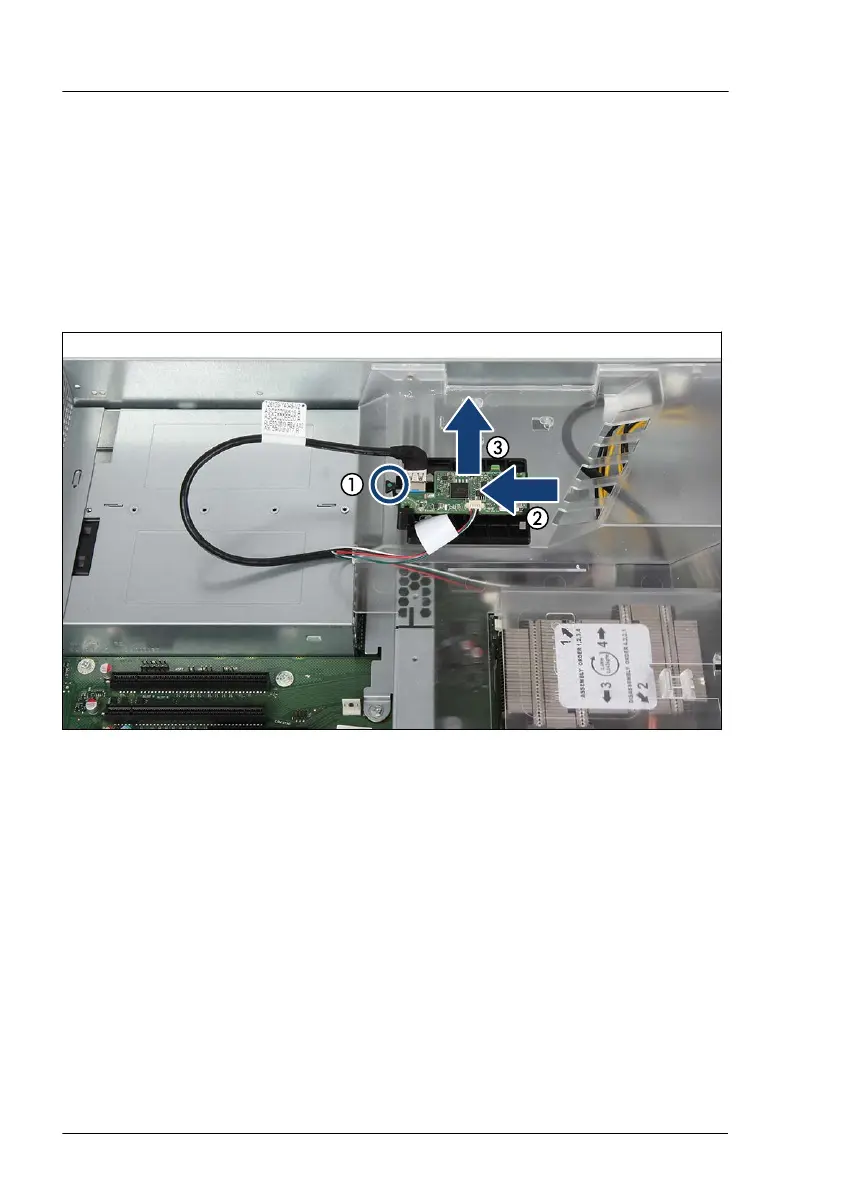

Figure 276: Removing the Dual microSD 64GB Enterprise
▶
Push the holder in direction of the arrow until it disengages (1).
▶
Remove the holder from the air duct (2).
▶
Remove the system air duct, see "Removing the air duct" on page
58.
▶
Disconnect the cables from the system board (see Figure 273).
▶
Disconnect the cables from the Dual microSD 64GB Enterprise (see
Figure 272).
System board and components
418 Upgrade and Maintenance Manual RX2520 M5
