Chapter 8: Image Viewer
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 8-4
Operator Manual © 2008 General Electric Company. All rights reserved.

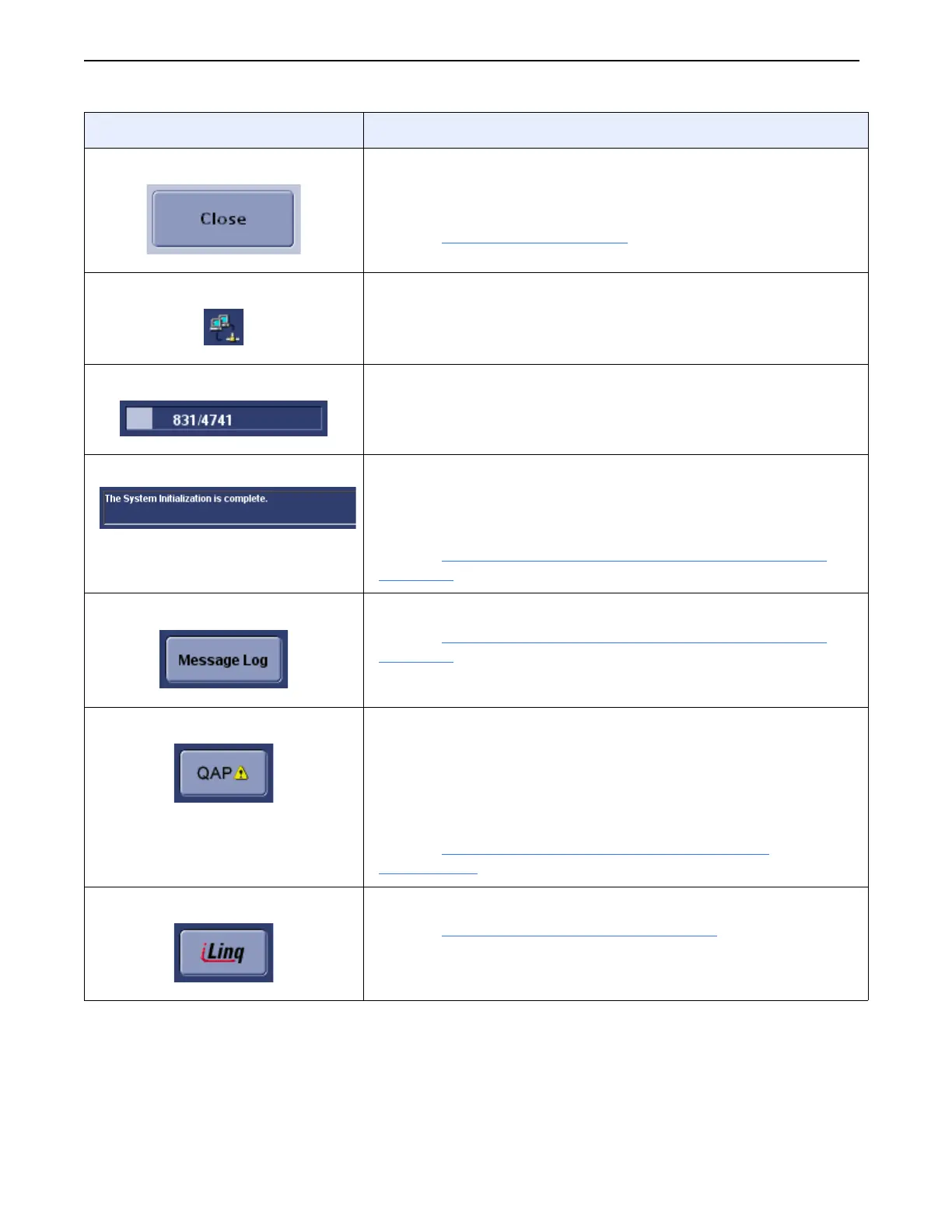

[CLOSE] Closes the Image Viewer screen and prompts you to save any
changes to images.
Close also initiates auto print and auto push, if enabled.
Refer to Save Changes to Images
(p. 8-27) for more information.
network connection status Appears when the Definium 5000 is connected to the hospital
network.
image database size Shows how many images are currently saved to the local
database and approximately how many more images the
database can accommodate.
system status Displays the last system status message.
NOTE: To clear the system status area, open the Message Log
and close it again.
Refer to Chapter 4:
General Information-System Status and
Messages (p. 4-7) for more information.
[MESSAGE LOG] Brings up the message log since the last system re-start.
Refer to Chapter 4:
General Information-System Status and
Messages (p. 4-7) for more information.
[QAP] When the yellow alert icon is present, indicates that QAP should
be performed to ensure continued image quality.
NOTE: QAP cannot be performed when the Image Acquisition or
Image Viewer screens are displayed. End the exam or
close the images before attempting to perform QAP.
Refer to Chapter 11:
Quality Assurance Process and
Maintenance for more information.
[iLinq] Connects to iLinq remote support services.
Refer to Chapter 4:
General Information-iLinq (p. 4-9) for more
information.
Function Description
